Product No: S13-1201

Mills 24in Double Decker A Frame Cable Drum Stand Dispenser

Product No: S13-1201

Mills 24in Double Decker A Frame Cable Drum Stand Dispenser

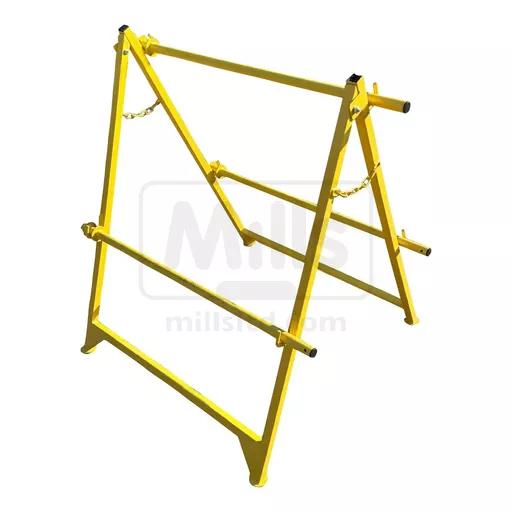

Mills 24in Double Decker A-Frame Cable Drum Stand Dispenser

The Mills Double Decker A Frame is the ’big brother’ to the Mills standard 24” A Frame S13-1200.

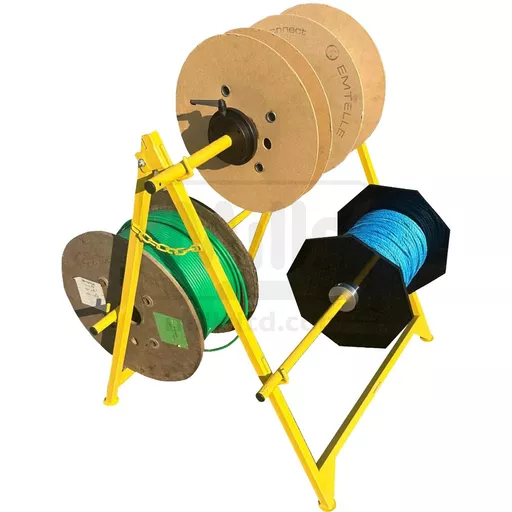

Featuring 3-reel bars, capable of supporting 50kg each, the Mills ‘Double Decker’ A Frame was introduced to allow multiple reels to be pulled and rewound simultaneously, including 6 microduct reels!

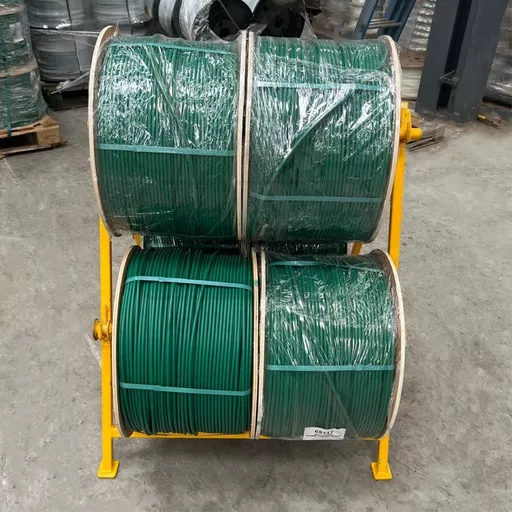

The ’Double Decker has a footprint of 800mm x 820mm with a height of 940mm, making it usable, when guarded, on pavements and ideal for dispensing up to 6 x 600mm diameter reels of cable or microduct simultaneous. This larger A Frame is also ideally for dispensing and rewinding multiple reels of drawrope on ply reels Mills (S83-0795) or drawrope bobbins (Mills S83-0795) when used with the Mills Bobbinmate Mills (S00-9750).

Dimensions: 800L x 820W x 940H mm

Weight 13kg

Main Features:

Heavy Duty A frame cable dispenser
Yellow Epoxy powder coated 25mm steel construction
50mm circular feet
Highly Portable
Non-Slip & secure

Technical Specification:

-Height (Floor to Bar): 940mm (when open)
-Width (Leg to Leg, Open): 800mm
-Maximum Drum Diameter: 820mm
-Cable Bar Length: 890mm
-Cable Diameter 24mm OD
-Weight of frame: 13Kg
-Maximum Load: 150Kg

Quick Links

£77.27 ex VAT
£92.72 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




Mills 24in Double Decker A-Frame Cable Drum Stand Dispenser

The Mills Double Decker A Frame is the ’big brother’ to the Mills standard 24” A Frame S13-1200.

Featuring 3-reel bars, capable of supporting 50kg each, the Mills ‘Double Decker’ A Frame was introduced to allow multiple reels to be pulled and rewound simultaneously, including 6 microduct reels!

The ’Double Decker has a footprint of 800mm x 820mm with a height of 940mm, making it usable, when guarded, on pavements and ideal for dispensing up to 6 x 600mm diameter reels of cable or microduct simultaneous. This larger A Frame is also ideally for dispensing and rewinding multiple reels of drawrope on ply reels Mills (S83-0795) or drawrope bobbins (Mills S83-0795) when used with the Mills Bobbinmate Mills (S00-9750).

Dimensions: 800L x 820W x 940H mm

Weight 13kg

Main Features:

Heavy Duty A frame cable dispenser
Yellow Epoxy powder coated 25mm steel construction
50mm circular feet
Highly Portable
Non-Slip & secure

Technical Specification:

-Height (Floor to Bar): 940mm (when open)
-Width (Leg to Leg, Open): 800mm
-Maximum Drum Diameter: 820mm
-Cable Bar Length: 890mm
-Cable Diameter 24mm OD
-Weight of frame: 13Kg
-Maximum Load: 150Kg

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Download Datasheet
