Runpotec X Board 500 Multi Function Mandrel

Product No: S83-2029

Runpotec X Board 500 Multi Function Mandrel

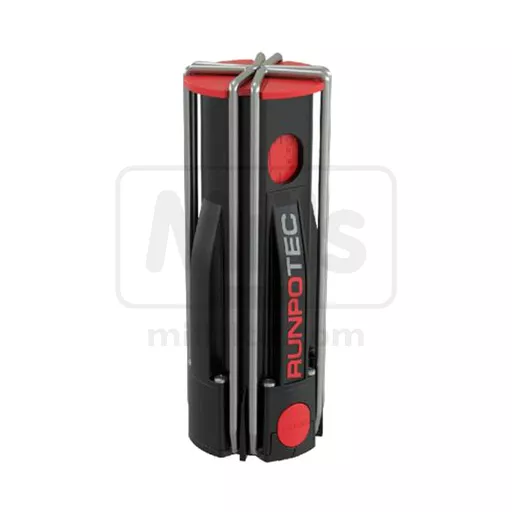

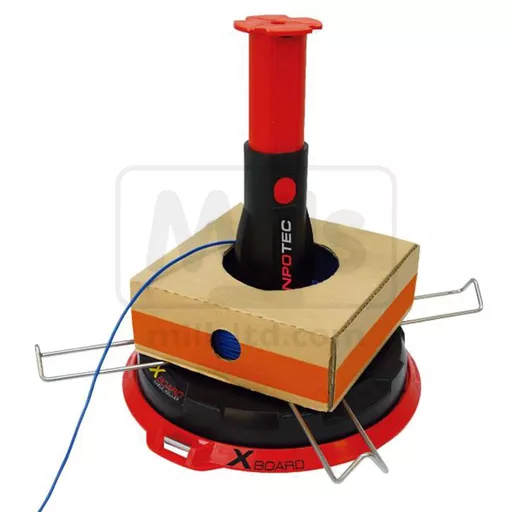

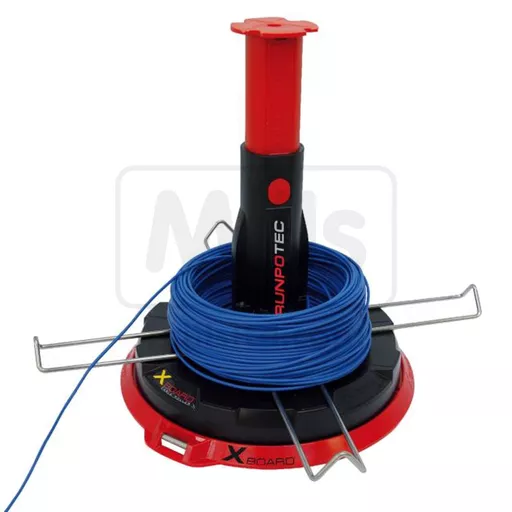

The multi-function mandrel has been specially developed for the S00-4350 X BOARD XB 500 cable rolling system. Loose cable bundles can be rolled by attaching them to the stainless steel centre mandrel of the XB 300 and then folding out the 4 side brackets.

The telescopic centre mandrel measures 72 mm in diameter making it ideal for rolling a thinner cable bundle with a small inner diameter or individual wires. The normal height of the multi-function mandrel is 196 mm, which can be extended up to max. 294 mm via the telescopic mechanism.

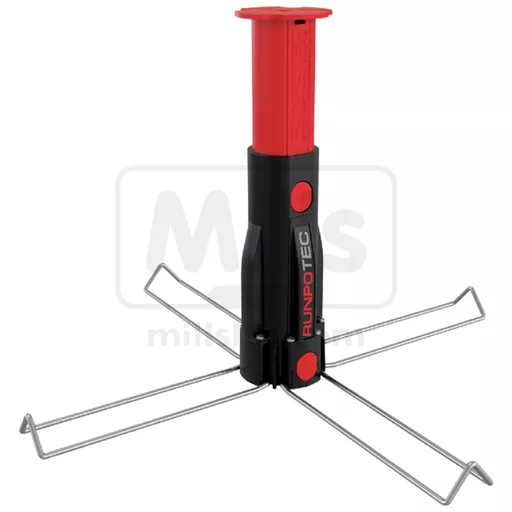

This means high cable bundles or corresponding tube bundles can also be rolled. When the 4 side brackets are unfolded, there is a total contact surface of 430 mm in diameter.

Quick Links

£94.62 ex VAT

£113.54 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

This means high cable bundles or corresponding tube bundles can also be rolled. When the 4 side brackets are unfolded, there is a total contact surface of 430 mm in diameter.

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
