Torque Mount 35 8x19 mm High Impact Modified UV-Resistant Pk100

Product No: R02-1956

Torque Mount 35 8x19 mm High Impact Modified UV-Resistant Pk100

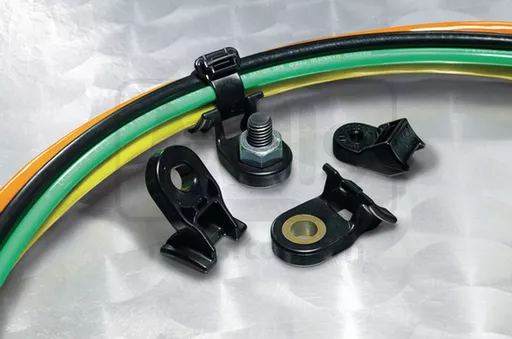

These heavy duty mounts (HDM) can be found in a variety of applications requiring heavy duty mounting in areas like the solar, railway, defence and/or agriculture industry.

Features

Design offers secure alignment to the bundle
Possible replacement of cushion clamps and/or metal clamps
Eliminates the needs for multiple sized fix diameter clamps
For heavy duty cable ties up to 12.7 mm width
High tightening torque through metal bushing
Easy maintenance of bundle by simply changing the cable tie

Fixation Method Screw Mounting and Rivet
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type #1/4" (M6) Screw

ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Max. Torque (kgf-cm) 132.5kgf-cm
Max. Torque (lbf-In) 9.583lbf-ft
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)

HellermannTyton Art.-No. 151-00437 | HDM25-PA66HIRHSUV-BK

Quick Links

£27.94 ex VAT

£33.53 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

These heavy duty mounts (HDM) can be found in a variety of applications requiring heavy duty mounting in areas like the solar, railway, defence and/or agriculture industry.

Features

Fixation Method Screw Mounting and Rivet
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type #1/4" (M6) Screw

Specifications

HellermannTyton Art.-No. 151-00437 | HDM25-PA66HIRHSUV-BK

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
