BWC47 Barrel Clamp Multi Strand Bare Wire 4.7mm

Product No: S83-1882

BWC47 Barrel Clamp Multi Strand Bare Wire 4.7mm

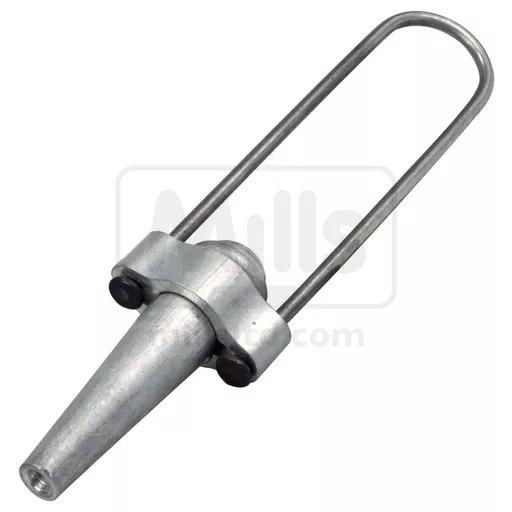

For the simple and fast dead-ending of figure-8 cables with steel messengers, comprising a conical body, a pair of wedges, a lanyard and a stainless steel bail.

The clamp body and collar is 104 mm by 55 mm. A bail wire is fitted with two ferrules and an insulated UV resistant thermoplastic thimble.

The thimble has a minimum insulating value of 11kV. The bail wire is attached to the collar and held by the two ferrules.

Used for Full Termination of multi strand 7 x 1.6mm bare catenary wire when replacing existing terminations

Ref 016974

MOQ is 70 pcs.

Quick Links

£9.97 ex VAT

£11.96 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

For the simple and fast dead-ending of figure-8 cables with steel messengers, comprising a conical body, a pair of wedges, a lanyard and a stainless steel bail. The clamp body and collar is 104 mm by 55 mm. A bail wire is fitted with two ferrules and an insulated UV resistant thermoplastic thimble. The thimble has a minimum insulating value of 11kV. The bail wire is attached to the collar and held by the two ferrules. Used for Full Termination of multi strand 7 x 1.6mm bare catenary wire when replacing existing terminations Ref 016974 MOQ is 70 pcs.</>

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
