Product No: C00-8125

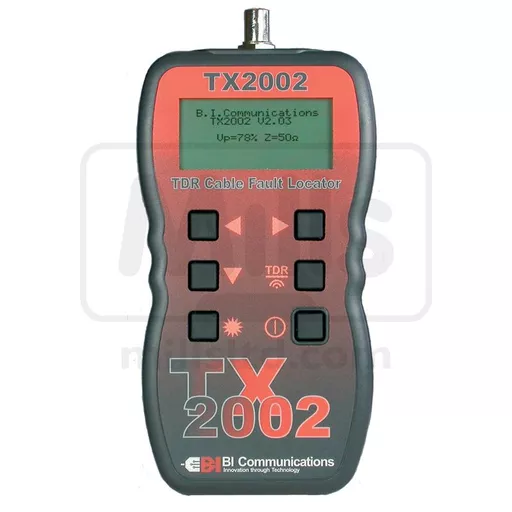

TX2002 TDR Cable Fault Locator

Product No: C00-8125

TX2002 TDR Cable Fault Locator

The Smallest Graphical TDR in the World

The TX2002 is a professional Time Domain Reflectomoter and toner designed to detect and locate faults on copper communication cables up to a distance of 3500m (11,500ft).

Advanced signal processing techniques enable the TX2002 to find open, short circuits, splices, taps, water ingress and other more elusive impedance mismatches. A buit in oscillator also provides a tone for pair tracing and identification.

Selectable cable impedance matching, along with variable velocity factor, enables the TX2002 to be used to test all communication cables, including twisted pair and coaxial, with graphical results and fault distance displayed on a backlit 64 x 128 pixel LCD.

The TDR/toner is housed in a tough, ruggedised ABS plastic m oulding, water and dust proof to IP54 and supplied complete with test leads and a protective tool-belt holster.

The TX2002 is designed and manufactured to international standards for quality, safety and reliability.

Lowest cost full specifiaction professional graphical TDR

Rugged palm-top design weighs less than 350g (12oz)

5 measurement ranges up to 3500m (11.500ft)

50, 75 & 100 Ohm selectable cable impedance

Built in tone generator for pair tracing and identification

Suitable for testing all communication cables

Water and dust proof to IP54

Complete with tool-belt holster and test leads

Dimensions 165 x 90 x 37mm
Weight 350g
Requires 4 x AA batteries (2x M99-6820)
