Product No: S83-1853

Eyebolt Expanding - BT Openreach Spec

Product No: S83-1853

Eyebolt Expanding - BT Openreach Spec

Fixings are electric galvanised to (BS1706 (1990) or ISO4520).

Quick Links

Type

£11.19 ex VAT

£13.43 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

These fixings are electric galvanised to (BS1706 (1990) or ISO4520)
Zinc coating: 8 micron minimum

The fixings are expected to provide corrosion resistance for a minimum 25 years (This cannot be guaranteed and is subject to UK location)

Available in the following options

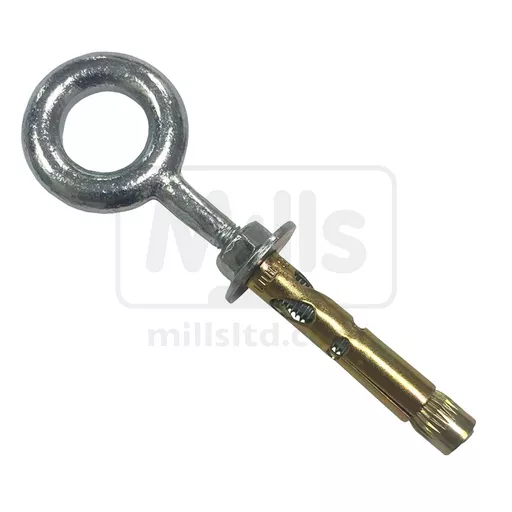

Eyebolt Expanding 1A - Pack of 20

Overhead single point fixing bolt.

The eyebolt is suitable for fitting to brick or concrete construction and has a rated minimum Safe Working Load of 2kN with a safety factor of 3:1 when the load is applied along the axis of the bolt, and at all angles up to 45 degrees to the axis of the bolt.

Ring size 15mm ID, 30mm OD.

Length overall: 92mm

Required hole size 8mm x 50mm deep.

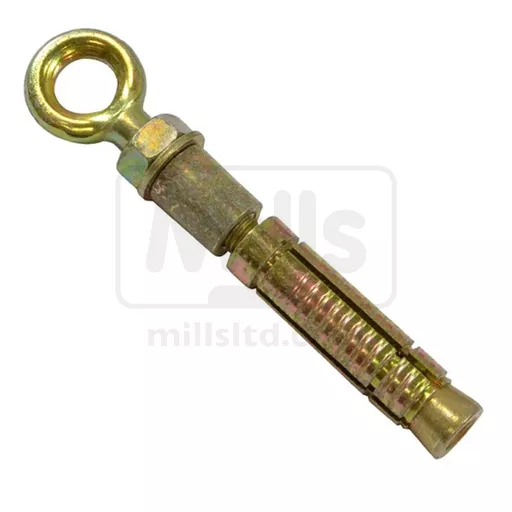

S83-0901 Eyebolt Expanding 2A - Pack of 20

A dropwire fixing consisting of a Zinc plated steel eyebolt with an M10 thread. This is the preferred method of attaching a dropwire to the end users premises, where the walls are rendered.

The eyebolt is suitable for fitting to brick or concrete construction through rendering / pebble-dash upto 20mm thick and has a rated minimum Safe Working Load of 2kN with a safety factor of 3:1 when the load is applied along the axis of the bolt, and at all angles up to 90 degrees to the axis of the bolt.

Ring size:14mm ID

Length overall: 110mm

Required Hole size: 16mm diameter x 95mm depth.

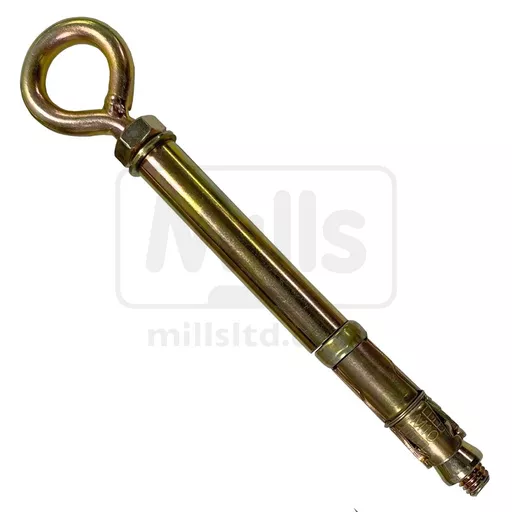

Eyebolt Expanding 2B - Pack of 5

A dropwire fixing consisting of a Zinc plated steel eyebolt with an M10 thread and a length of 205mm. This is the preferred method of attaching a dropwire to the end users premises, where the walls are clad.

The eyebolt is suitable for fitting to brick or concrete construction through insulation / rendering / pebble-dash between 70 and 90mm thick and has a rated minimum Safe Working Load of 2kN with a safety factor of 3:1 when the load is applied along the axis of the bolt, and at all angles up to 90 degrees to the axis of the bolt.

Ring size 23mm ID, 40mm OD.

Length overall 215mm

Drilling Depths: 16mm x 155mm Overall, 16mm x 70mm Minimum into solid wall

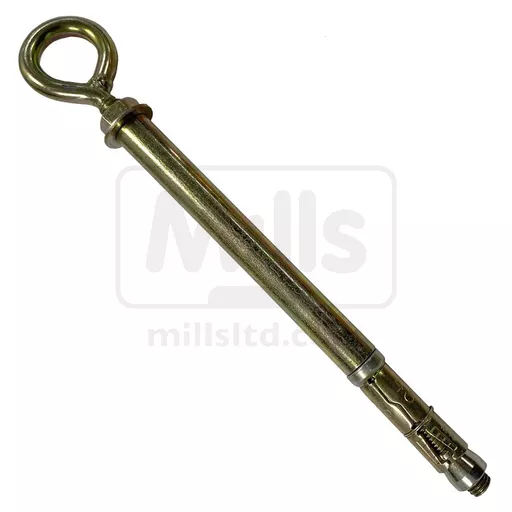

Eyebolt Expanding 2C - Pack of 5

A dropwire fixing consisting of a Zinc plated steel eyebolt with an M10 thread and a length of 255mm. This is the preferred method of attaching a dropwire to the end users premises, where the walls are heavily clad.

The eyebolt is suitable for fitting to brick or concrete construction through insulation / rendering / pebble-dash between 90 and 110mm thick and has a rated minimum Safe Working Load of 2kN with a safety factor of 3:1 when the load is applied along the axis of the bolt, and at all angles up to 90 degrees to the axis of the bolt.

Ring size 23mm ID with 40mm OD

Length overall 260mm

Drilling Depths: 16mm x 210mm Overall, 16mm x 70mm Minimum into solid wall

BT Openreach References

1A - Ref: 016445
2A - Ref: 016442 / 021689 / 023041
2B - Ref 023041
2C - Ref: 76274

Mills Part Numbers

S83-1853 Eyebolt Expanding 1A - Pack of 20
S83-0901 Eyebolt Expanding 2A - Pack of 20
S83-2626 Eyebolt Expanding 2B - Pack of 5
S83-2628 Eyebolt Expanding 2C - Pack of 5
