Product No: 74665

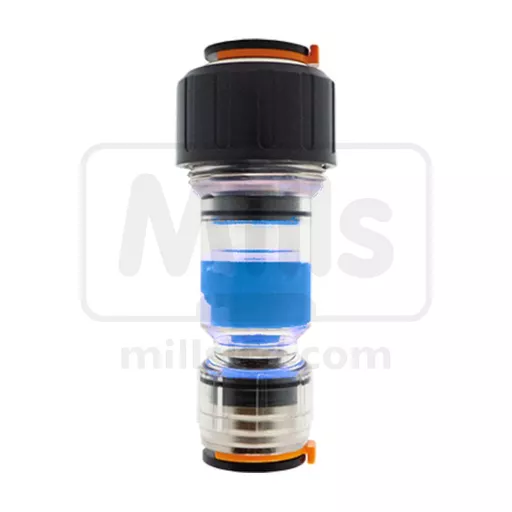

7-5mm Gas Block Connector Pk10

Product No: 74665

7-5mm Gas Block Connector Pk10

The Gas Block connector provides a tube to tube joint and seal as well as providing a low-pressure gas seal between the inner microduct and the fibre bundle.

Gas blocks are suitably sized to match the tube diameters. When the fittings are pushed onto a clean-cut tube end, they make an airtight seal with internal O-rings. After installation of the fibre, the gas block seal is activated by turningthe nut clockwise.

If the tube is pulled away from the connector, internal teeth and a tapered body cause the tube to be gripped tighter. Removal of the tube is achievable by pressing the collet inwards.

The gas block connector is designed to be fitted at the point where the external network 7mm microducts connects to the internal network 5mm microduct and provides a seal between the installed fibre unit and the inner area of the microduct.

The internal gas blocking seal can be used on Emtelle's 2fu, 4fu, 6fu, 8fu, 12fu & 24fu.

Materials
Body: Transparent HP Polymer
Cartridge: Nickel Plated Brass
Collet: Techno Polymer
Seal: NBR
Lock Claw: Stainless Steel
Cable Seal: Silicon
Compression Nut: Techno Polymer
Back Ring: Techno Polymer

Dimensions
Length: 58.6mm Width: 20.5mm

Operating Performance
Working Pressure: 20 Bar
Short Term Blowing Pressure: 25 Bar
Burst Pressure: >45 Bar
Gas Blocking: 0.5 Bar
Water Ingress: 0.4 Bar
Temperature: -20°C - +50°C

Quick Links

£39.57 ex VAT

£47.48 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The Gas Block connector provides a tube to tube joint and seal as well as providing a low-pressure gas seal between the inner microduct and the fibre bundle.

Gas blocks are suitably sized to match the tube diameters. When the fittings are pushed onto a clean-cuttube end, they make an airtight seal with internal O-rings. After installation of the fibre, the gas block seal is activated by turningthe nut clockwise.

If the tube is pulled away from the connector, internal teeth and a tapered body cause the tube to be gripped tighter. Removal of the tube is achievable by pressing the collet inwards.

The internal gas blocking seal can be used on Emtelle's 2fu, 4fu, 6fu, 8fu, 12fu & 24fu.

Dimensions
Length: 58.6mm Width: 20.5mm

Operating Performance
Working Pressure: 20 Bar
Short Term Blowing Pressure: 25 Bar
Burst Pressure: >45 Bar
Gas Blocking: 0.5 Bar
Water Ingress: 0.4 Bar
Temperature: -20°C - +50°C
