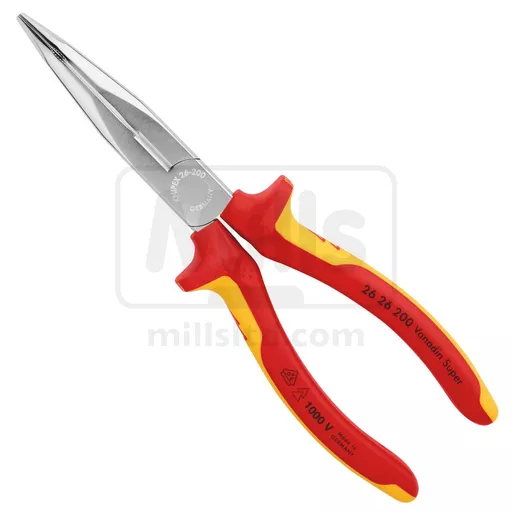

Knipex 26 26 200 1000V VDE Bent Snipe Nose Side Cutting Pliers 200mm

Product No: E00-0106

Knipex 26 26 200 1000V VDE Bent Snipe Nose Side Cutting Pliers 200mm

These forged, oil-hardened and insulated stork beak pliers with multi-component grip are ideal for installation, insertion and assembly, as well as powerful cutting. The cutting edges of the pliers are shaped to produce a pierced cut. The Knipex 26 26 200 also cuts hard wires.

Dimensionally stable under torsion – very powerful when cutting

The flexible precision tips made of vanadium electric steel are torsion-resistant and angled 40°. The pliers allow you to control the manual force. The cutting edge position near the joint favours the transmission of force. This results in impressive cutting values for medium-hard wire of up to 3.2 Ømm and for hard wire of up to 2.2 Ømm.

Components and wires are easily accessible in control cabinets, machines or electric motors

Whether connecting wires to conductor terminals, in junction boxes or in control cabinet construction – the extra-long tips of the VDE tested stork beak pliers from Knipex 26 26 200 allow you to work efficiently, especially when space is tight. Their qualities are appreciated whenever cables and wires need to be held, inserted or cut.

Elastic tips: dimensionally stable even when twisted

Distortion-tolerant, elastic precision tips
Half-round, long, tapered jaws
With cutting edges for soft, medium-hard and hard wire
Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
40° angled jaws
Vanadium electric steel, forged, multi stage oil-hardened

Specification

Head chrome-plated

Handles insulated with multi-component grips, VDE-tested

Weight 204 g

Dimensions 200 x 56 x 19 mm

Standard DIN ISO 5745 DIN EN 60900 IEC 60900

Cutting capacities medium hard wire (diameter) Ø 3.2 mm

Cutting capacities hard wire (diameter) Ø 2.2 mm

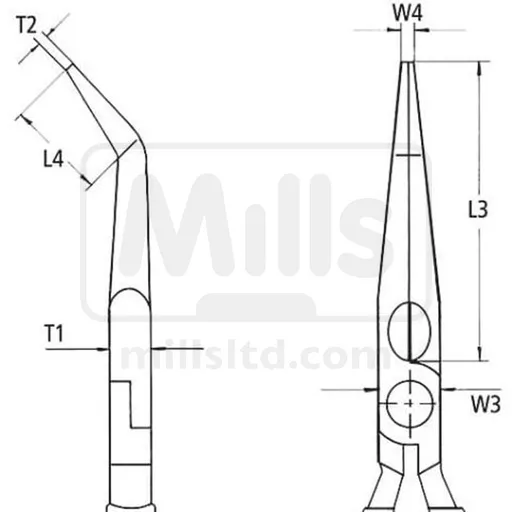

Jaw thickness (joint) (T1) 9.5 mm

Tips width (W4) 3.0 mm

Tips thickness (T2) 2.5 mm

Gripping surface length (L4) 23.0 mm

Jaw length (L3) 73.0 mm

Head width (W3) 18 mm

Quick Links

Length: 200mm - 8"

Insulation: 1000V VDE

£40.61 ex VAT

£48.73 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

Dimensionally stable under torsion – very powerful when cutting

Components and wires are easily accessible in control cabinets, machines or electric motors

Features

Elastic tips: dimensionally stable even when twisted
Distortion-tolerant, elastic precision tips
Half-round, long, tapered jaws
With cutting edges for soft, medium-hard and hard wire
Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
40° angled jaws
Vanadium electric steel, forged, multi stage oil-hardened

Specification

Head chrome-plated
Handles insulated with multi-component grips, VDE-tested
Weight 204 g
Dimensions 200 x 56 x 19 mm
Standard DIN ISO 5745 DIN EN 60900 IEC 60900
Cutting capacities medium hard wire (diameter) Ø 3.2 mm
Cutting capacities hard wire (diameter) Ø 2.2 mm
Jaw thickness (joint) (T1) 9.5 mm
Tips width (W4) 3.0 mm
Tips thickness (T2) 2.5 mm
Gripping surface length (L4) 23.0 mm
Jaw length (L3) 73.0 mm
Head width (W3) 18 mm
