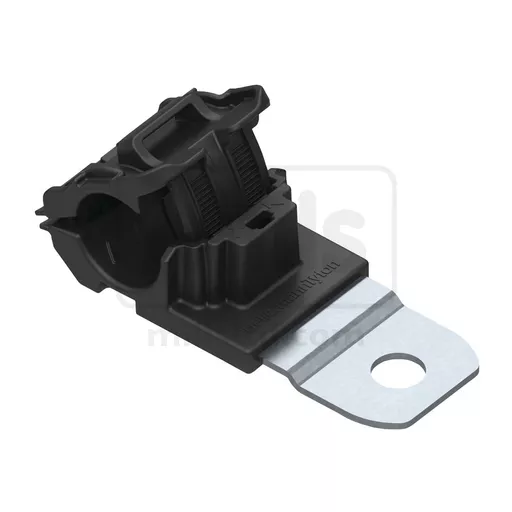

HellermannTyton Ratchet P-Clamp UV-Resistant Max Bundle 19.5mm Pk280

Product No: R02-1968

HellermannTyton Ratchet P-Clamp UV-Resistant Max Bundle 19.5mm Pk280

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors.

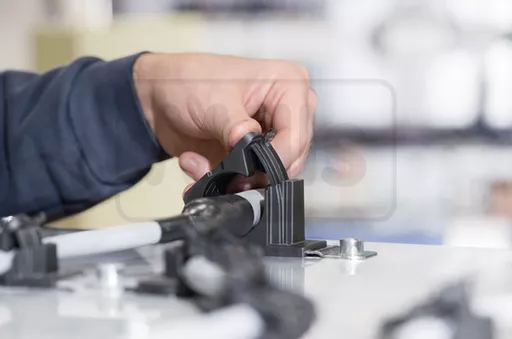

The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.

Features
• One-piece ratchet closure design allows for easy installation during pre- or final assembly
• Multiple configurations handle a wide range of diameters and applications, reducing part inventory
• Clamp interior is designed to guide and center bundle to reduce pinching
• Easy release feature allows for quick adjustments and maintenance
• Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
• Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray

CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Plenum Rating AH-2
Stamping Material Steel (ST)
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Resistant (Yes/No) Yes

Fixing Hole M10

Bundle min 12.7mm

Bundle max 19.5mm

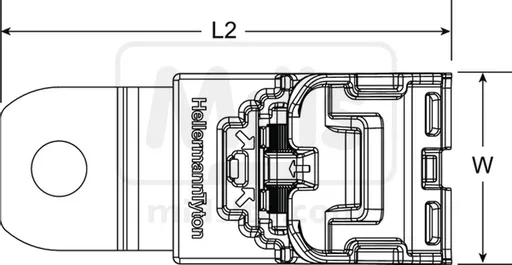

Dimensions 34.9 x 83.1mm

Supplied in a pack of 280

HellermannTyton Art.-No. 151-01390 | RCB180SM10-PA66HIRHSUV/ST/ZN-BK
