Product No: R02-1969

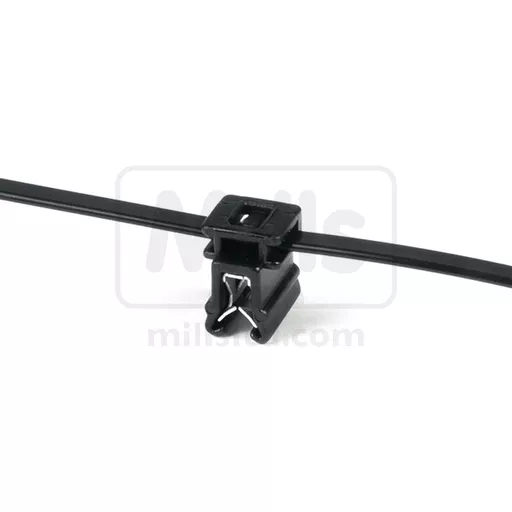

HellermannTyton T50ROSEC4A Edge Fastening 1 to 3mm - Pack of 500

Product No: R02-1969

HellermannTyton T50ROSEC4A Edge Fastening 1 to 3mm - Pack of 500

These cable tie and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail.

These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

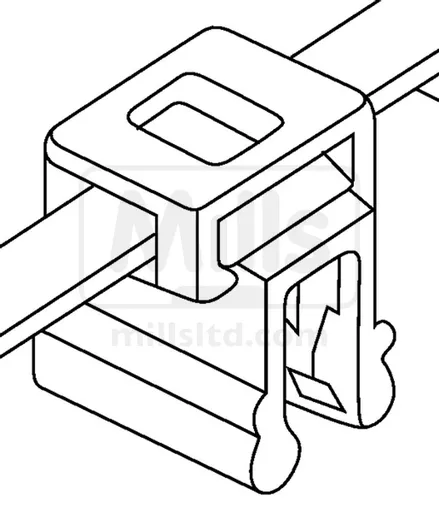

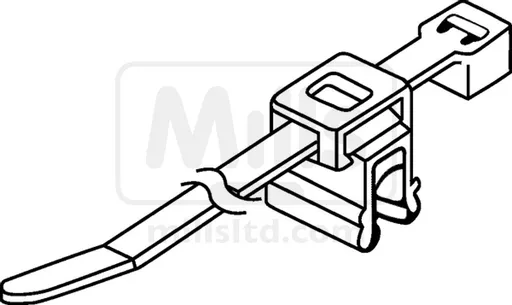

These two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.

Foot Part Polyamide 6.6, UV-resistant (PA66W)
Material Polyamide 6.6, UV-resistant (PA66W)
Pack Size 500pcs.
Variant Outside Serrated

ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)

Top fixing for edges 1.0 to 3.0mm thickness.

HellermannTyton Art.-No. 156-00570 | T50ROSEC4A-PA66W-BK

Quick Links

Black
200mm - 8"
4.6mm
£219.30 ex VAT
£263.16 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




These cable tie and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail.

These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

These two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.

Foot Part Polyamide 6.6, UV-resistant (PA66W)
Material Polyamide 6.6, UV-resistant (PA66W)
Pack Size 500pcs.
Variant Outside Serrated

ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)

Top fixing for edges 1.0 to 3.0mm thickness.

HellermannTyton Art.-No. 156-00570 | T50ROSEC4A-PA66W-BK
