HellermannTyton CWB Customer Wall Box with 1 x LC/APC DX Adaptor

Product No: CWB-BK

HellermannTyton CWB Customer Wall Box with 1 x LC/APC DX Adaptor

The CWB is an IP54/IK07 rated enclosure manufactured from UV stable brown polycarbonate. The enclosure is fitted with a tamper-proof lock and a 55 x 15mm inset position on the front cover that allows for a customer logo to be moulded.

The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm.

Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary.

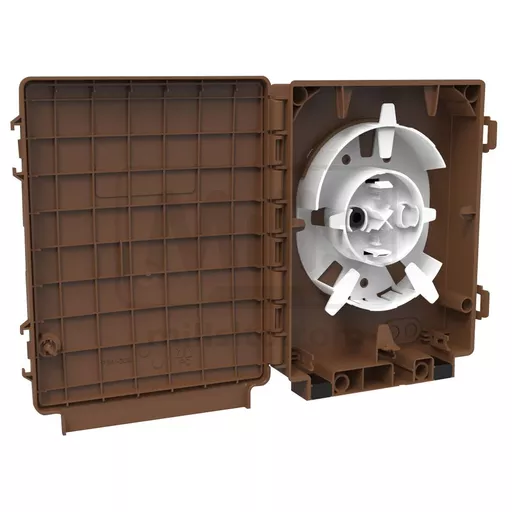

A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm).

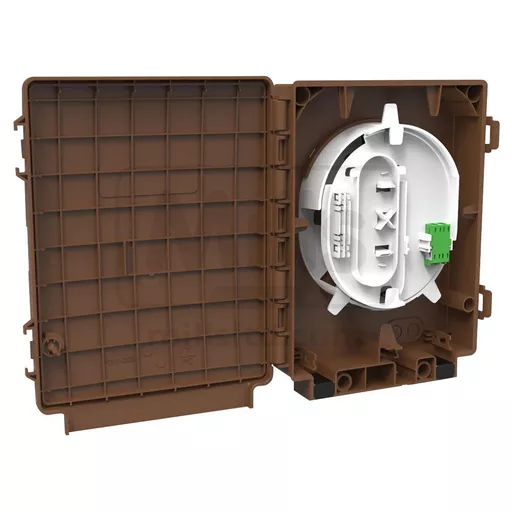

A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (1 x LC/APC DX Adaptor provided) and has been specifically moulded to secure 3A splices.

Two types of seals are available for different cable OD (3.0-8.0mm seal and 10.0mm seal).

Features & Benefits

Maximum 4 Customer Connections
6 Entry/Exit Ports at the base max. 8mm
2 Entry/Exit Ports at the rear max. 6.4mm
Accommodation for 2 LC Duplex/SC Simplex Adaptors (1x LC/APC DX adaptor included)
Maximum 4 x 3A splices
IP54
Storage for excess fibre
Tamperproof

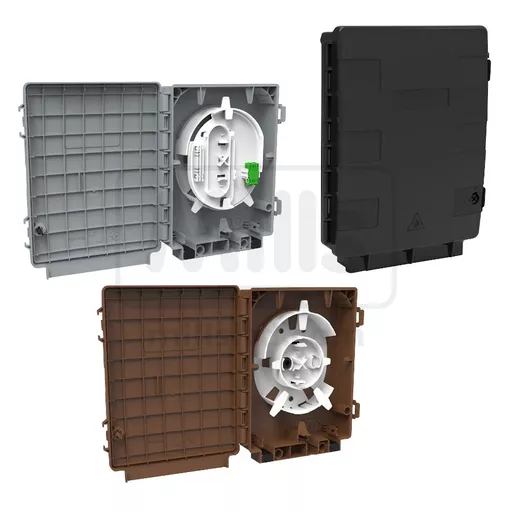

Available in Black, Brown and Grey.

Quick Links

Colour

£12.60 ex VAT

£15.12 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm.

Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary.

A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm).

A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (1 x LC/APC DX Adaptor provided) and has been specifically moulded to secure 3A splices.

Two types of seals are available for different cable OD (3.0-8.0mm seal and 10.0mm seal).

Features & Benefits

Available in Black, Brown and Grey.

Mills / HellermannTyton Part Numbers

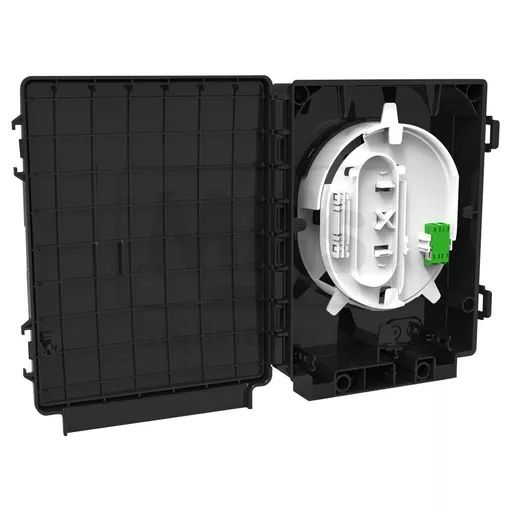

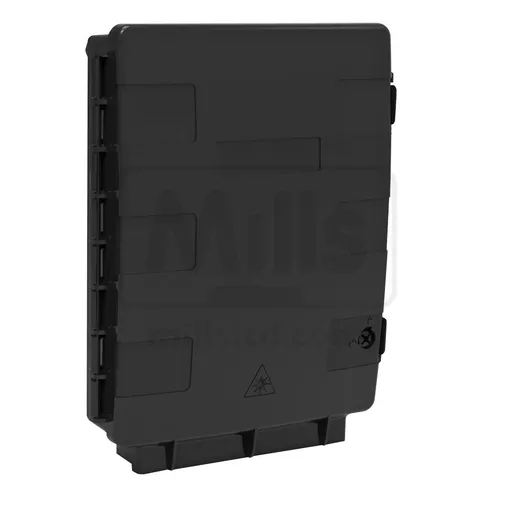

CWB-BK Customer Wall Box With 1 x LC/APC DX Adaptor - Black

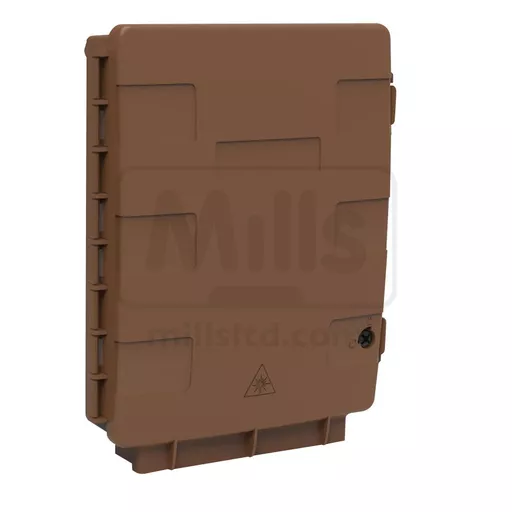

CWB-BN Customer Wall Box With 1 x LC/APC DX Adaptor - Brown

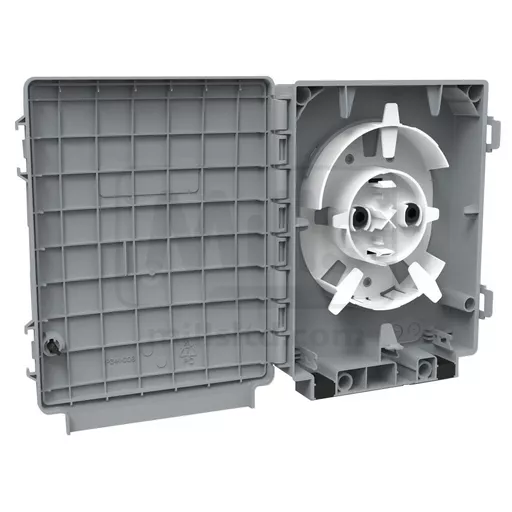

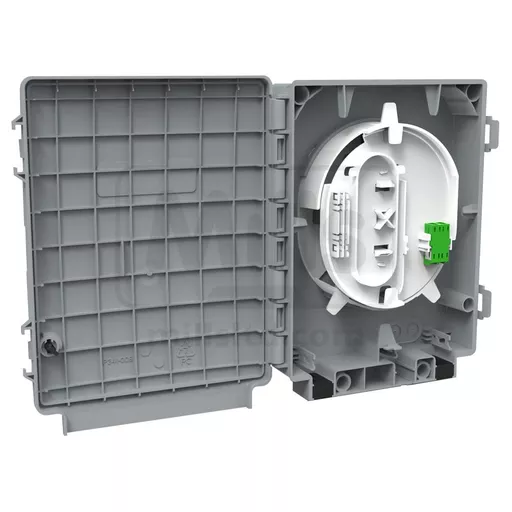

CWB-GY Customer Wall Box With 1 x LC/APC DX Adaptor - Grey
