Singlemode OS2 OTDR Fibre Launch Box / Exit Fibre 2.2km with Armoured Tails

Product No: T70-5051

Singlemode OS2 OTDR Fibre Launch Box / Exit Fibre 2.2km with Armoured Tails

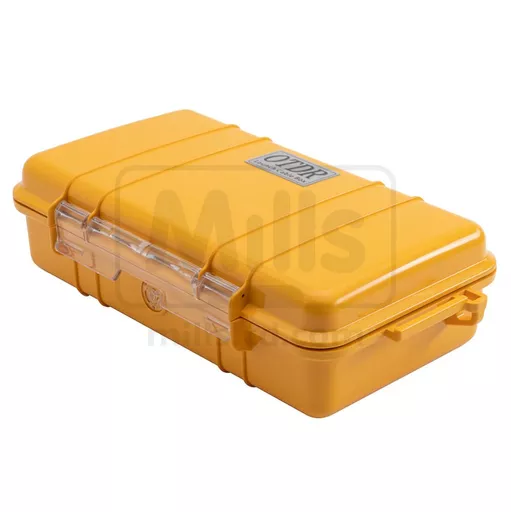

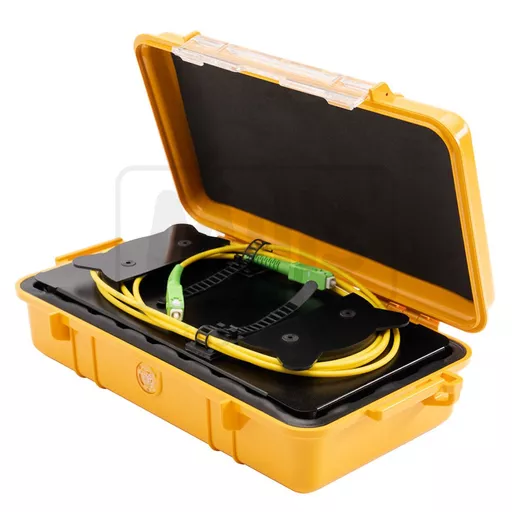

OTDR Launch lead to launch and receive test cable loss measurements for fibre optic links and is connected link under test, to reveal the insertion loss and reflectance of the near-end connection.

The Launch Lead is supplied in a waterproof and dustproof compact SR polypropylene enclosure.

Features

• Compact and rugged construction
• SR Polypropylene case
• Water/dust proof
• Variety of connector options
• Range of fibre lengths
• Prevents fibre damage and ensures accurate results

Specifications

Each Launch Lead is tested to the following compliance standards: IEC 61300-3-4, IEC 61300-3-6, IEC 61300-3-35, IEC 60793-1-20

The fibre supplied is compliant with the following specifications:
OS2 ( 9/125) - ITU Standard G652.D, G657.a

The connectors supplied with each unit are compliant with the following specifications:
IEC 61300-2-2 mating durability, based on a 500 matings cycle per connector.

Typical Loss (dB)
<1.0dB @ 1310nm w/ 2000 meters for SM fibre

Return Loss (dB) UPC≥50dB, APC≥60dB, PC≥35dB
Repeatability (dB) ≤0.2dB (1000 times)
Exchangeability (dB) ≤0.2dB

Height (mm) 141
Width (mm) 238
Depth (mm) 66
Weight (kg) 1.1
Box Material SR Polypropylene
Operating Temperature (oC) -40 to +55

Quick Links

Connector

Request price

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

OTDR Launch lead to launch and receive test cable loss measurements for fibre optic links and is connected link under test, to reveal the insertion loss and reflectance of the near-end connection.

The Launch Lead is supplied in a waterproof and dustproof compact SR polypropylene enclosure.

Features

• Compact and rugged construction
• SR Polypropylene case
• Water/dust proof
• Variety of connector options
• Range of fibre lengths
• Prevents fibre damage and ensures accurate results

Specifications

Each Launch Lead is tested to the following compliance standards: IEC 61300-3-4, IEC 61300-3-6, IEC 61300-3-35, IEC 60793-1-20

The fibre supplied is compliant with the following specifications:
OS2 (9/125) - ITU Standard G652.D, G657.a

The connectors supplied with each unit are compliant with the following specifications:
IEC 61300-2-2 mating durability, based on a 500 matings cycle per connector.

Typical Loss (dB) <1.0dB @ 1310nm w/ 2000 meters for SM fibre

Return Loss (dB) UPC≥50dB, APC≥60dB, PC≥35dB
Repeatability (dB) ≤0.2dB (1000 times)
Exchangeability (dB) ≤0.2dB

Height (mm) 141
Width (mm) 238
Depth (mm) 66
Weight (kg) 1.1
Box Material SR Polypropylene
Operating Temperature (oC) -40 to +55

Mills Part Numbers

T70-5051 SC/APC - FC/UPC Launch Lead 2.2km with 1.5m Armoured Tail & Case

T70-5050 SC/APC - LC/UPC Launch Lead 2.2km with 1.5m Armoured Tail & Case
