Product No: C00-4122

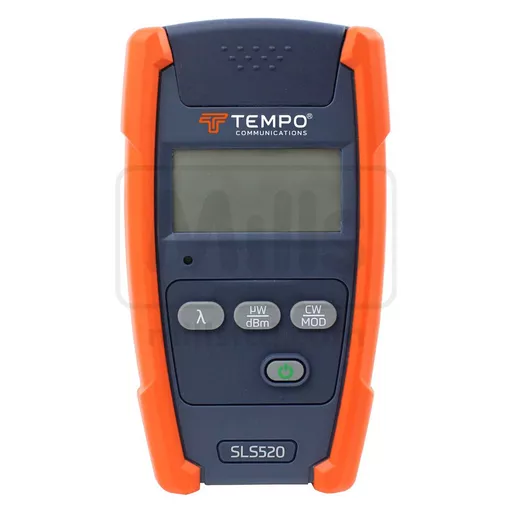

Tempo SLS520 Dual Wavelength Laser Source 1310/1550

Product No: C00-4122

Tempo SLS520 Dual Wavelength Laser Source 1310/1550

Durable and compact, the SLS520 Stabilised Light Source will interface with all industry standard connectors.

Features

• 270Hz, 1kHz and 2kHz tone

• PC flat polish interface

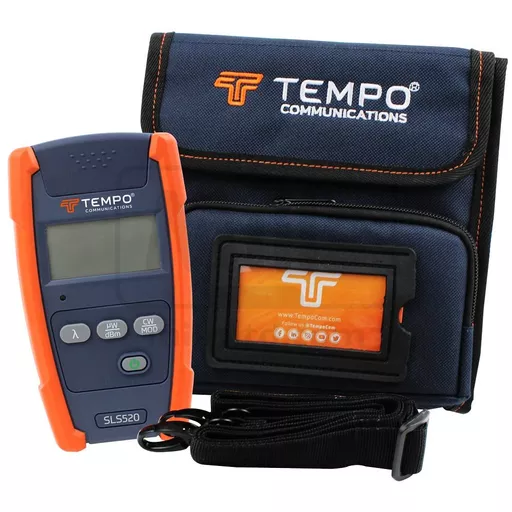

• Each source is supplied with one SC/PC adapter for each bulkhead.

Specifications

Centre Wavelength 1310/1550nm

Fiber Type Singlemode

Emitter Type FP

Spectrum Width ≤ 5nm

Output Power (Max/Min) ≤ 0dBm/-1dBm

Output Power Stability ±0.05 dB/15min; ±0.10dB/8hr

Modulation Frequency 270, 1kHz, 2kHz

Display LCD

Battery Life 60 Hours

Connector Type SC/PC (Interchangeable LC ,ST, FC)

Power Supply 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter

Operating Temerature -10ºC to 50ºC

Storage Temperature -20ºC to 70ºC

Relative Humidity 0 to 95% (non-condensing)

Weight 0.71 lbs (300g)

Dimensions (H×W×T) 6.1 × 3.5 × 1.3” (155 × 89 × 33mm)

IP Rating IP54

Vibration 5Hz to 150Hz, Amplitude = 0.15mm

Shock Peak acceleration 25g at a pulse duration of 6ms

Compliance CE, FCC, 21 CFR 1040.10 (Laser)

Quick Links

£788.14 ex VAT
£945.77 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




Durable and compact, the SLS520 Stabilised Light Source will interface with all industry standard connectors.

Features

• 270Hz, 1kHz and 2kHz tone

• PC flat polish interface

• Each source is supplied with one SC/PC adapter for each bulkhead.

Specifications

Centre Wavelength 1310/1550nm

Fiber Type Singlemode

Emitter Type FP

Spectrum Width ≤ 5nm

Output Power (Max/Min) ≤ 0dBm/-1dBm

Output Power Stability ±0.05 dB/15min; ±0.10dB/8hr

Modulation Frequency 270, 1kHz, 2kHz

Display LCD

Battery Life 60 Hours

Connector Type SC/PC (Interchangeable LC ,ST, FC)

Power Supply 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter

Operating Temerature -10ºC to 50ºC

Storage Temperature -20ºC to 70ºC

Relative Humidity 0 to 95% (non-condensing)

Weight 0.71 lbs (300g)

Dimensions (H×W×T) 6.1 × 3.5 × 1.3” (155 × 89 × 33mm)

IP Rating IP54

Vibration 5Hz to 150Hz, Amplitude = 0.15mm

Shock Peak acceleration 25g at a pulse duration of 6ms

Compliance CE, FCC, 21 CFR 1040.10 (Laser)

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Download Datasheet
Download C00 4120 2
