Product No: 72319

Emtelle Mini Duct Seals - Pack of 100

Product No: 72319

Emtelle Mini Duct Seals - Pack of 100

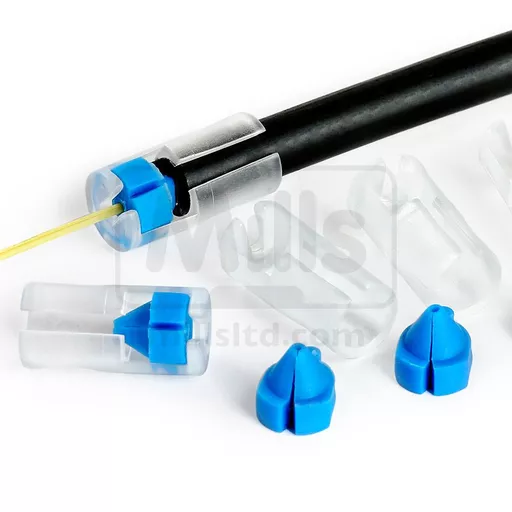

The Divisible Fibre Restraints are an easy to install Gas and Watertight seal suitable for sealing Emtelle’s fibre-unit in Emtelle’s Fibreflow microduct range.

The miniduct seal is easy to install on new installations and existing installations (retrofit).

Thanks to the clever design you no longer need to slide a seal all the way along the fibre to seal it against Gas & Water.

Due to the compact design these seals can be installed in all situations, even in locations with difficult access.

Features

• Gas and Water tight up to 0.5 bar
• Suitable for retro fitting
• Easy installation
• No need to slide the seal over the glass fibre for installation
• Slim design

Specifications

Plastic housing: PC
Sealing Plug: TPE
Sealing: up to 0.50 bar
Pull out strength housing: >20N Values are indications, true values may depend on cables, duct and field installations.The measure-speed is 100mm/min / Temperature 20°Cv

Supplied in a pack of 100

Quick Links

Size

£193.95 ex VAT

£232.74 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The Divisible Fibre Restraints are an easy to install Gas and Watertight seal suitable for sealing Emtelle’s fibre-unit in Emtelle’s Fibreflow microduct range.

The miniduct seal is easy to install on new installations and existing installations (retrofit).

Thanks to the clever design you no longer need to slide a seal all the way along the fibre to seal it against Gas & Water.

Due to the compact design these seals can be installed in all situations, even in locations with difficult access.

Features

• Gas and Water tight up to 0.5 bar
• Suitable for retro fitting
• Easy installation
• No need to slide the seal over the glass fibre for installation
• Slim design

Specifications

Plastic housing: PC
Sealing Plug: TPE
Sealing: up to 0.50 bar
Pull out strength housing: >20N Values are indications, true values may depend on cables, duct and field installations. The measure-speed is 100mm/min / Temperature 20°Cv

Supplied in a pack of 100

Available in the following sizes (external / internal diameter)

5mm / 1.25mm
5mm / 2.1mm
6mm / 0.9mm
6mm / 1.6mm
7mm / 1.6mm
7mm / 2.5mm
8mm / 0.9mm

Mills Part Numbers

71720 Mini Duct Seal (5mm / 1.25mm) Pk100
72318 Mini Duct Seal (5mm / 2.1mm) Pk100
73572 Mini Duct Seal (6mm / 0.9mm) Pk100
73573 Mini Duct Seal (6mm / 1.6mm) Pk100
72319 Mini Duct Seal (7mm / 1.6mm) Pk100
71724 Mini Duct Seal (7mm / 2.5mm) Pk100
73234 Mini Duct Seal (8mm / 0.9mm) Pk100

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
