Product No: S00-3511

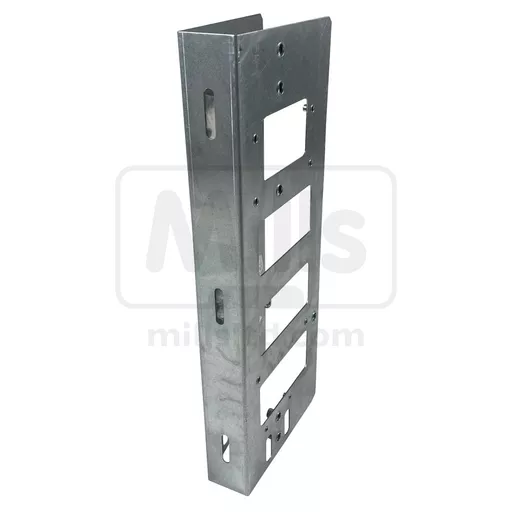

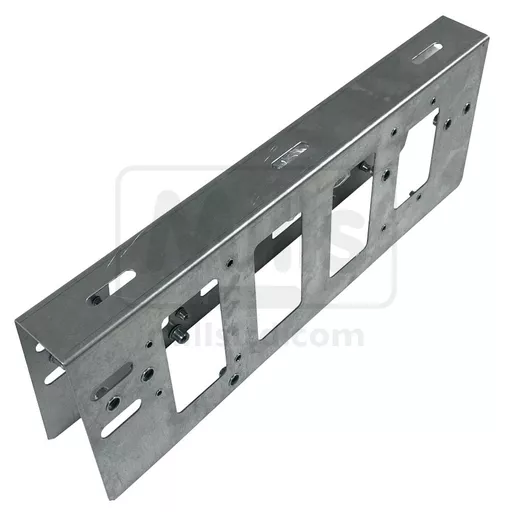

Mills CBT Back to Back Mobra Bracket

Product No: S00-3511

Mills CBT Back to Back Mobra Bracket

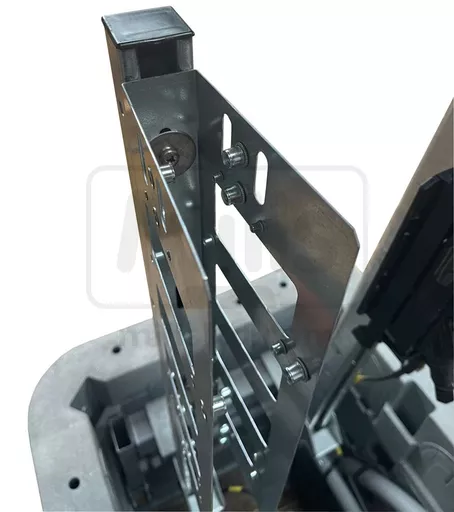

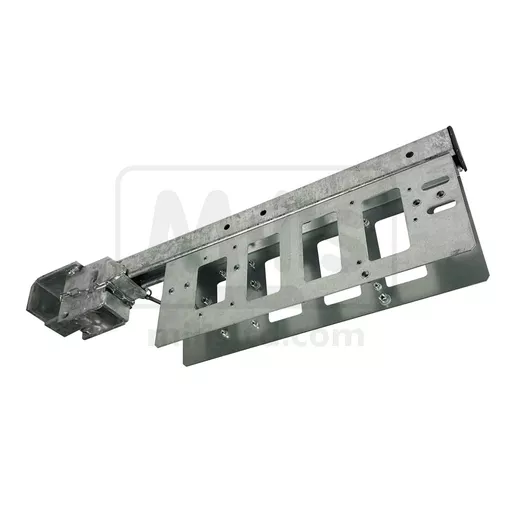

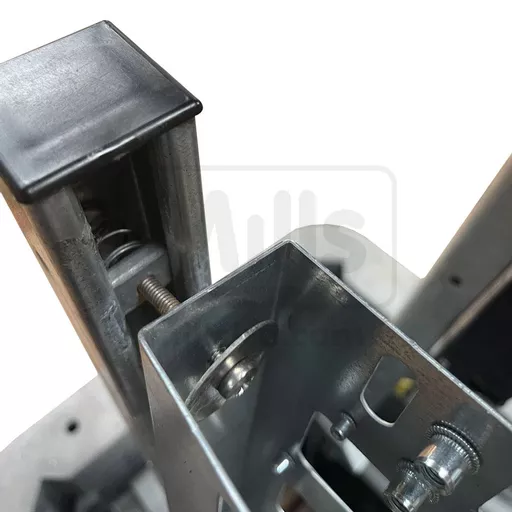

Mills CBT back to Back Mobra Bracket is similar to the existing CBT Pole Bracket, but designed to by bolted using Zebedee spring nuts (V07-1906, V07-1907) to a Mobra arm (S83-0526 or S83-0528)

Suitable for 4, 8 and 12 Way Corning and Commscope CBTs ( Connector Block Terminals )

Manufactured from 1.2mm galvanised steel, the bracket is approved for PIA application and fixes to a Mobra Arm

The bracket has 4 x 3mm, 8 x 4mm and 4 x 6mm nutserts to accept different manufacturers' CBT’s

The ‘back to back bracket is supplied with 4 x M3 x 25 Pozi Panhead Screws, 8 x M4 x 30 Pozi Panhead Screws and 4 x M6 x 30 Pozi Panhead Screws

Each face measures 380 x 140 mm and the bracket 'stands off' 165mm.

Mobra arm will require 2 x drill fixing holes.

Ref: 101539

Quick Links

£32.29 ex VAT
£38.75 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




Mills CBT back to Back Mobra Bracket is similar to the existing CBT Pole Bracket, but designed to by bolted using Zebedee spring nuts (V07-1906, V07-1907) to a Mobra arm (S83-0526 or S83-0528)

Suitable for 4, 8 and 12 Way Corning and Commscope CBTs ( Connector Block Terminals )

Manufactured from 1.2mm galvanised steel, the bracket is approved for PIA application and fixes to a Mobra Arm

The bracket has 4 x 3mm, 8 x 4mm and 4 x 6mm nutserts to accept different manufacturers' CBT’s

The ‘back to back bracket is supplied with 4 x M3 x 25 Pozi Panhead Screws, 8 x M4 x 30 Pozi Panhead Screws and 4 x M6 x 30 Pozi Panhead Screws

Each face measures 380 x 140 mm and the bracket 'stands off' 165mm.

Mobra arm will require 2 x drill fixing holes.

Ref: 101539

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Download Datasheet
