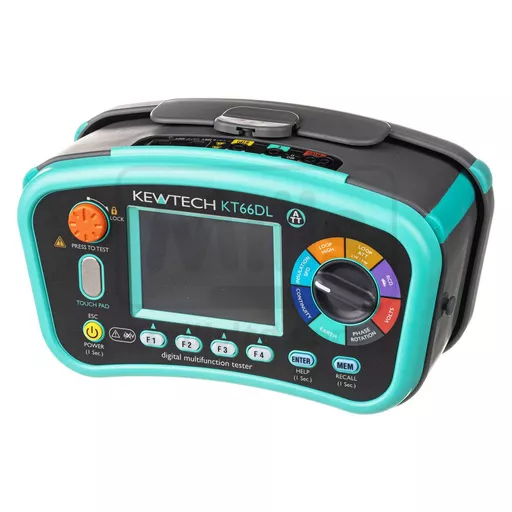

Kewtech KT66DL Advanced Multifunction Tester

Product No: C70-2030

Kewtech KT66DL Advanced Multifunction Tester

Kewtech have designed the KT66DL to be a 12-in-1 Multifunction Tester.

It provides accuracy and performance engineered with a pioneering, sophisticated loop testing system, including 3 & 2 wire low current test options complete with a comprehensive RCD testing facility and EV charging point test capacity.

Features

Extra-large colour screen display
3 ways to test
- Single press of the test button
- Lockdown test button for continuous testing
- Using the test button and the additional test probe
Established easy to use interface with one rotary dial and four function keys
Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
Two low current loop options: 3 wire & 2 wire
EVSE loop option
EVSE 6 mA DC ramp and tripping time test
Insulation test function with PI
Surge protection device test
Comprehensive RCD function including type EV & B and variable RCD test
Earth resistance 3 & 2 wire options
PAT function, including download
G7 test leads
Max Zs tables for current and old standards
Phase rotation
Advanced memory
Simultaneous display of L-N, L-N, L-E voltage (TRMS)
Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
Help display
Advanced memory - assigns DB, circuit no. ad type of test i.e. Zs or Ze
Two continuity tests 200mA & 15mA
55V loop test capability - suitable for 110V CTE systems
Padded neck strap
Supplied with G7 test leads and additional probe incorporating a test button
Tests Type AC, ACS, A, AS, F, B, BS & EV
UC - contact voltage test
Touch voltage pad with selectable limits
Heavy duty canvas carry case with extra room for your testing accessories

Contents

Kewtech KT66DL Multifunction Tester
ACC064SP G7 test lead with remote test button
ACC065 G7 Test lead set
8 x AA Batteries
Instruction Manual
End of line Calibration Certificate
KAMP 12 Mains lead
Test lead pouch
Soft carry case
