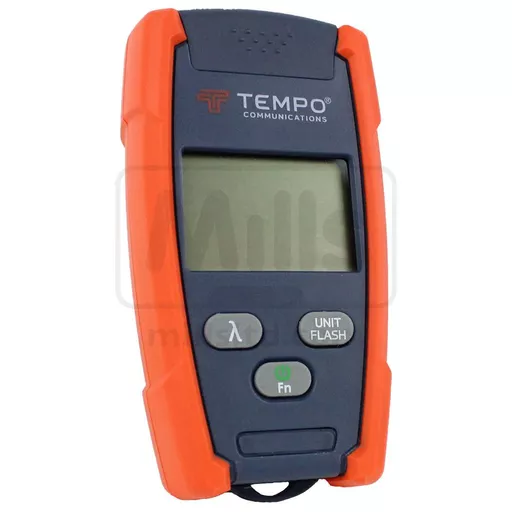

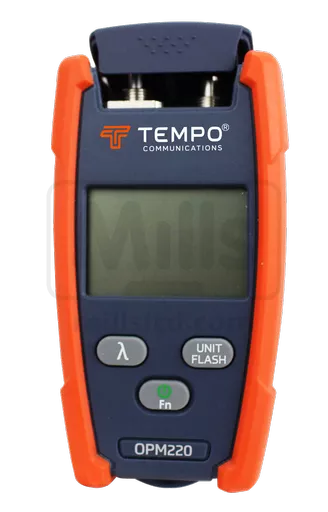

Tempo OPM Micro Optical Power Meter with VFL

Product No: C00-7617

Tempo OPM Micro Optical Power Meter with VFL

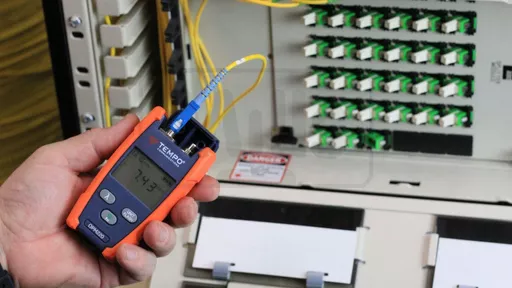

The Tempo Communications Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. Injected tones of 270Hz, 1kHz, and 2kHz from a compatible source can be used to positively identify fibre optic cables.

The Micro OPM supports wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm

Features

Standard and High Power Optical Power Options
Measure Optical Power (dB, dBm & mW)
OPM210 Measuring Range: -70 to + 10dBm (980/1270/1310/1490/1550/1577/1625); -60 to +10dBm (850/1300)
OPM220 Measuring Range: -50 to +26dBm (980/1270/1310/1490/1550/1577/1625); -40 to +26dBm (850/1300)
Accurate Insertion Loss Measurements
Tone and Probe Fibre Networks at 270Hz, 1kHz and 2kHz
Absolute or Referenced Optical Power Measurements

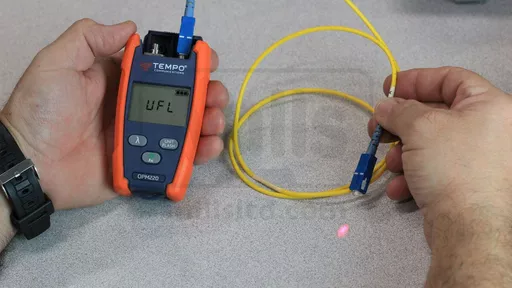

Integrated Visual Fault Locator
Integrated Flash Light
InGaAs detector for Maximum Sensitivity
Wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
Universal Bulkheads
Compatible with Singlemode and Multimode Networks
Auto Off or Continuous On Operation
AAA Battery Operation
Supplied with Lanyard.

Quick Links

Type

£250.21 ex VAT

£300.25 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The Micro OPM supports wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm

Features

Standard and High Power Optical Power Options
Measure Optical Power (dB, dBm & mW)
OPM210 Measuring Range: -70 to + 10dBm (980/1270/1310/1490/1550/1577/1625); -60 to +10dBm (850/1300)
OPM220 Measuring Range: -50 to +26dBm (980/1270/1310/1490/1550/1577/1625); -40 to +26dBm (850/1300)
Accurate Insertion Loss Measurements
Tone and Probe Fibre Networks at 270Hz, 1kHz and 2kHz
Absolute or Referenced Optical Power Measurements
Integrated Visual Fault Locator
Integrated Flash Light
InGaAs detector for Maximum Sensitivity
Wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
Universal Bulkheads
Compatible with Singlemode and Multimode Networks
Auto Off or Continuous On Operation
AAA Battery Operation
Supplied with Lanyard
