Product No: C00-4121

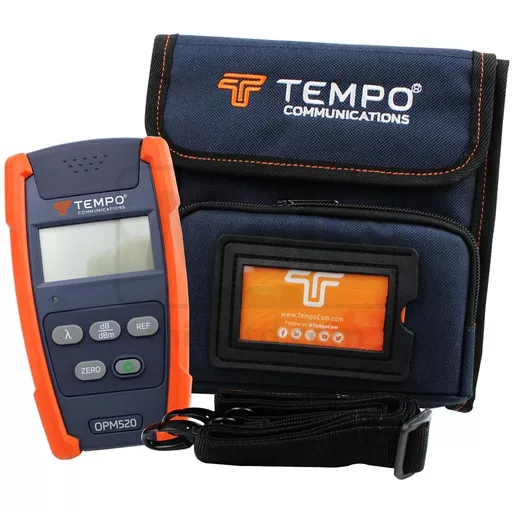

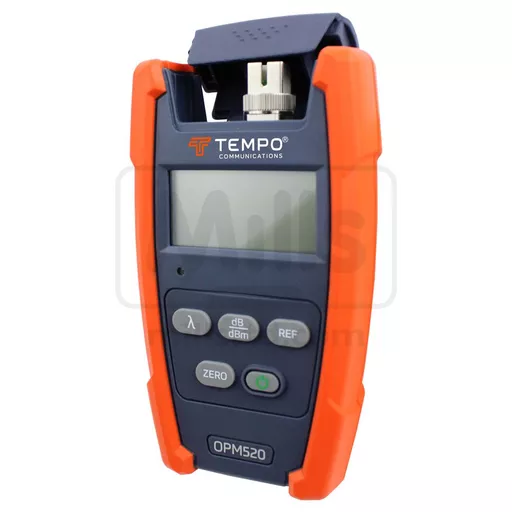

Tempo OPM520 Optical Power Meter

Product No: C00-4121

Tempo OPM520 Optical Power Meter

Durable and compact, the OPM520 interfaces with all industry standard connectors.



Features

• InGaAs detector for maximum sensitivity

• Filtered InGaAs for measuring high powered optical signals

• Singlemode and multimode measurements

• Calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm

• 270Hz, 1kHz and 2kHz tone

• Each optical power meter is supplied with one SC/PC adapter.



Specifications

Cal. Wavelength 850, 1300, 1310, 1490, 1550, 1625nm

Measure range -50 ~ +27 dBm

Detector type InGaAs

Accuracy ±0.25 dB(±0.5dB@850nm)

Linearity +/-0.5dB +27 to -3dBm+/-0.1dB -3 to -50dBm

Resolution 0.01dB

Functions μW/dBm/dB(REF) / MOD tone detection 270Hz, 1kHz, 2kHz

Connector Type SC (Interchangeable LC, ST, FC)

Fiber Type Singlemode & Multimode

Battery Life> 100 Hours

Power Supply 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter

Operating Temperature -10ºC ~ 50ºC

Storage Temperature -20ºC ~70ºC

Relative Humidity 0 to 95% (Non-Condensing)

Weight 0.68lbs (300g)

Dimensions (H × W × T) 6.1 × 3.5 × 1.3” (155 × 88 × 33mm)

IP Rating IP54

Vibration 5Hz to 150Hz, Amplitude+0.15mm

Shock Peak acceleration 25g at a pulse duration of 6ms

Compliance CE, FCC

Quick Links

Measurement Range -50 - +27 dBm
£471.40 ex VAT
£565.68 inc VAT
