EXFO FIP-200 FTTH Connector Checker

Product No: C00-0220

EXFO FIP-200 FTTH Connector Checker

Inspection tool for Fibre-to-the-home (FTTH) and service activation applications.

Available individually or as a kit.

Quick Links

Type

Request price

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The EXFO FIP 200 is an inspection tool for Fibre-to-the-home (FTTH) and service activation applications. With a dual-core CPU and single-button operation, this compact tester quickly provides automated assessment of connector clean condition in 7 seconds. It features pass/fail thresholds adapted to broadband activation, Bluetooth/Wi-Fi connectivity, battery status LED, and local storage of 100 single-fibre measurements. The 5-bar rating LED lights are highly visible even in the dark.

The checker is purpose built for broadband service activation. It is compact, intuitive, with adapted pass/fail thresholds and cloud-hosted job management to ensure compliance and trouble-free activation in one click.

Key Features

Streamlined form factor and easy to use
Single-button operation for power-on and capture
Five-bar rating (LED lights) to quickly assess cleanliness of the connector
Visually clear pass/fail thresholds adapted to broadband context
Long-reach head to easily access dense panels and cabinets
Variety of tips available for most common FTTH fiber terminals
Quick-connect design: quarter-turn click for switching between tips
Short-reach head for cost-effective SC inspection
Autonomous operation, can be used on its own without a cell phone
Test all day without any interruption: Long-lasting battery- Stores test results locally
Cloud-hosted job management and reporting via EXFO Exchange™ to ensure technician compliance
Rugged and designed for the field

Applications;

Fibre-to-the-home (FTTH)
Service activation

Available individually or as a kit.

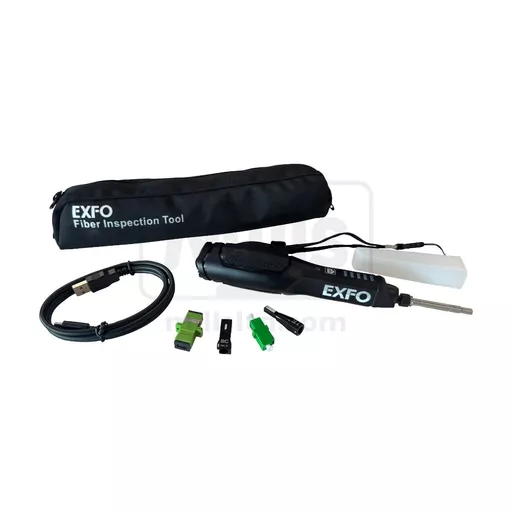

FIP-200-A-KIT-2 = SC/APC + LC/APC inspection kit comprises

FIP-200 Connector Checker™
OHC-L long-reach optical head
CTIP-SC inspection tip
CTIP-LC inspection tip
Soft carrying case (GP-3253),
Power supply (GP-2227))

See datasheet for further details.

Mills Part Numbers

C00-0220 EXFO FIP-200 Connector Checker

C00-0235. EXFO FIP-200-A-KIT-2 Connector Checker Fibre Inspection Kit
