Product No: P09-5011

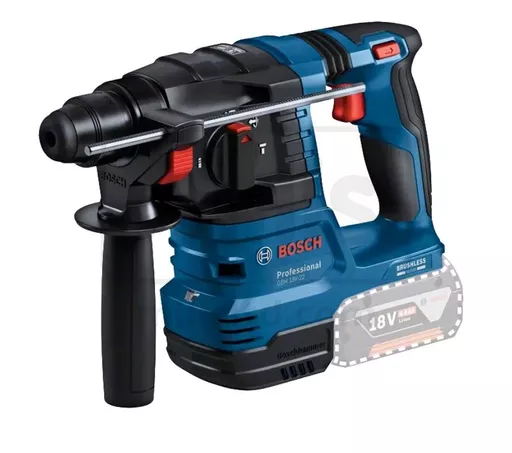

Bosch GBH18V-22  SDS Plus Cordless Hammer Drill (Bare unit & Box)

Product No: P09-5011

Bosch GBH18V-22  SDS Plus Cordless Hammer Drill (Bare unit & Box)

Muscle strain, unexpected jolts, and dust inhalation are just some of the hazards you face when drilling in concrete. Fortunately, we’ve developed the GBH 18V-22 Professional rotary hammer to make your job more comfortable. This tool is compact, light, and ergonomically designed with a well-defined centre of gravity, so you will find it easier and less tiring to handle it, especially when drilling overhead. You stay in control and there’s less impact on your hands and arms thanks to KickBack Control and Vibration Control. Connect the hammer to the GDE 18V-12 Professional dust extractor with just one click for a cleaner site while you work. And you can wrap up the job with less interruptions too – this tool combines high performance with efficient battery runtime.

Equipment & Application

The GBH 18V-22 Professional rotary hammer is your tool of choice if you want a powerful but manageable power tool. It is ideal for drilling 6 mm to 10 mm holes, whether you are a plumber putting in sanitary installations or a carpenter prepping a site for a kitchen installation. Equally, if you are an electrician, you can count on this tool, particularly when drilling overhead to install lighting, lamps, and smoke detectors. The GDE 18V-12 Professional dust extractor is specially designed to facilitate overhead work. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.

  • More comfort and less strain while drilling, even during overhead work

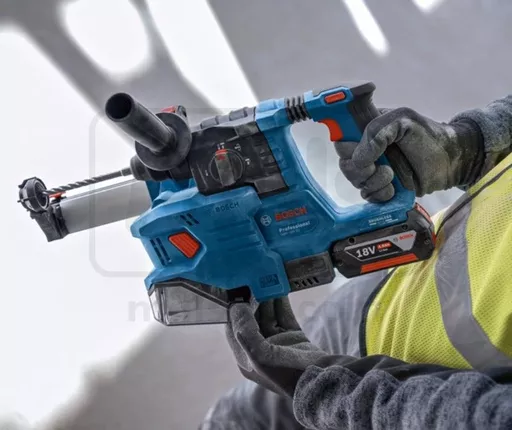

  • Lightweight hammer drilling with specially designed clip-on dust extractor
  • Uninterrupted work thanks to improved runtime

The most important data
Impact energy (according to EPTA 05/2016)* 1.9 J
Impact rate at rated speed* 0 – 4,675 bpm
Rated speed* 0 – 1,050 rpm
Battery voltage* 18.0 V
Weight excl. battery* 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height)** 220 x 340 x 100 mm

Drilling range
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah 9.4 m/s²
Uncertainty K 1.5 m/s²

Quick Links

£191.95 ex VAT
£230.34 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




Muscle strain, unexpected jolts, and dust inhalation are just some of the hazards you face when drilling in concrete. Fortunately, we’ve developed the GBH 18V-22 Professional rotary hammer to make your job more comfortable. This tool is compact, light, and ergonomically designed with a well-defined centre of gravity, so you will find it easier and less tiring to handle it, especially when drilling overhead. You stay in control and there’s less impact on your hands and arms thanks to KickBack Control and Vibration Control. Connect the hammer to the GDE 18V-12 Professional dust extractor with just one click for a cleaner site while you work. And you can wrap up the job with less interruptions too – this tool combines high performance with efficient battery runtime.

Equipment & Application
The GBH 18V-22 Professional rotary hammer is your tool of choice if you want a powerful but manageable power tool. It is ideal for drilling 6 mm to 10 mm holes, whether you are a plumber putting in sanitary installations or a carpenter prepping a site for a kitchen installation. Equally, if you are an electrician, you can count on this tool, particularly when drilling overhead to install lighting, lamps, and smoke detectors. The GDE 18V-12 Professional dust extractor is specially designed to facilitate overhead work. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.

More comfort and less strain while drilling, even during overhead work
Lightweight hammer drilling with specially designed clip-on dust extractor
Uninterrupted work thanks to improved runtime


The most important data
Impact energy (according to EPTA 05/2016)* 1.9 J
Impact rate at rated speed* 0 – 4,675 bpm
Rated speed* 0 – 1,050 rpm
Battery voltage* 18.0 V
Weight excl. battery* 2.3 kg
Tool holder SDS plus
Packaging dimensions (width x length x height)** 220 x 340 x 100 mm

Drilling range
Drilling dia. in concrete with hammer drill bits 4 – 22 mm
Opt. app. range in concrete with hammer drill bits 4 – 12 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah 9.4 m/s²
Uncertainty K 1.5 m/s²
