Jonard Mid Span Slitter

Product No: E00-6425

Jonard Mid Span Slitter

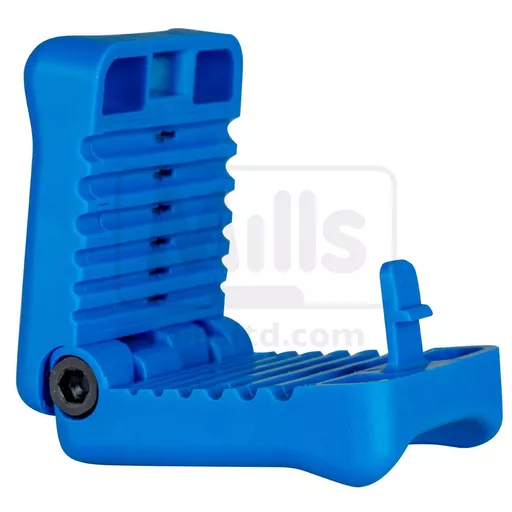

The patented and award-winning Mid Span Slit Tools are designed to provide easy access to optical fibres in outer jackets and loose buffer tubes.

With precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fibre jacket or buffer tube without damaging the fibre inside.

Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

Blades last for 5,000 slits/cuts.

Available in the following configurations

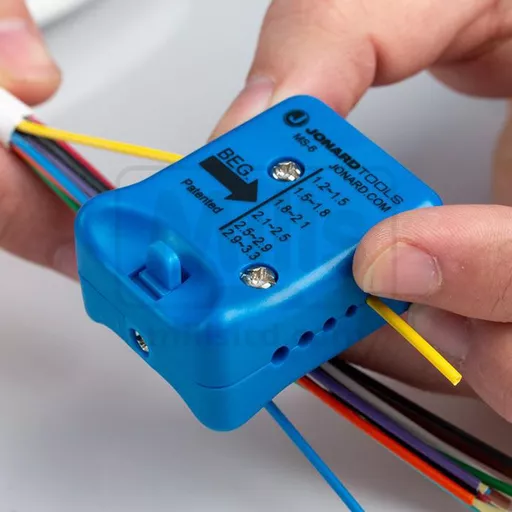

MS-6

Consists of 6 precision slitting grooves ranging in size from 1.2 mm to 3.3 mm

This tool was specially designed for use on OFS InvisiLight EZ-Bend® 3.0 mm fibre cable and also works with Corning's outdoor ALTOS® loose tube, Microduct MiniXtend® HD and MiniXtend® cable with binderless FastAccess® Technology, indoor/outdoor FREEDM® and LSZH® loose tube cables, PPC Semiflex 3 mm cable, and other similar style cables

Groove Sizes: 1.2-1.5 mm | 1.5-1.8 mm | 1.8-2.1 mm | 2.1-2.5 mm | 2.5-2.9 mm | 2.9-3.3 mm

Replacement blade set available, part number: MSB-1533

---------

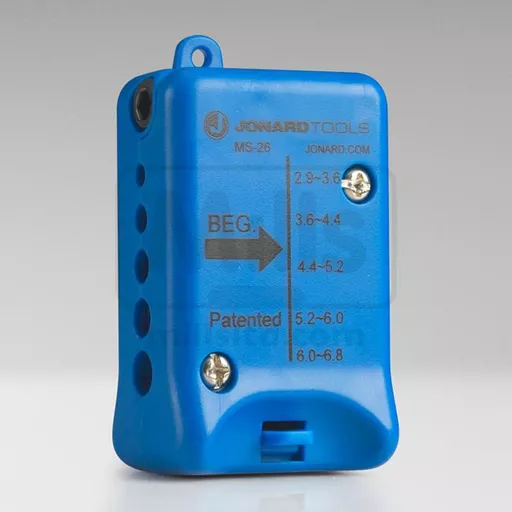

MS-26

Consists of 5 precision slitting grooves ranging in size from 2.9 mm to 6.8 mm

This tool works great with OFS EZ-Bend® 3.0 mm and 4.8 mm drop cables and other similar style cables

Groove Sizes: 2.9-3.6 mm | 3.6-4.4 mm | 4.4-5.2 mm | 5.2-6.0 mm | 6.0-6.8 mm

Replacement blade set available, part number: MSB-2968

Quick Links

Diameter

£69.25 ex VAT

£83.10 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The patented and award-winning Mid Span Slit Tools are designed to provide easy access to optical fibres in outer jackets and loose buffer tubes.

With precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fibre jacket or buffer tube without damaging the fibre inside.

Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

Blades last for 5,000 slits/cuts.

Available in the following configurations

MS-116

Consists of 6 precision slitting grooves ranging in size from 1.1 mm to 1.6 mm

Perfect for slitting the Hexatronic Stingray Air Blown Fibre and other similarly sized fibre cables

Blades last for 5,000 slits/cuts

Groove Sizes: 1.1 mm | 1.2 mm | 1.3 mm | 1.4 mm | 1.5 mm | 1.6 mm

Replacement blade set available, part number: MS-116RB

MS-6

Consists of 6 precision slitting grooves ranging in size from 1.2 mm to 3.3 mm
