OPT T0158 FTTP 36f COF215 ULW OH Dropwire Cable Sheath Stripper

Product No: E00-5751

OPT T0158 FTTP 36f COF215 ULW OH Dropwire Cable Sheath Stripper

OPT 36f COF215 Ultra-Lightweight Overhead Sheath Stripper.

Used to remove the sheath from 24f, 36f and 48f Ultra-Lightweight Over Head Cable.

Quick Links

£144.84 ex VAT

£173.81 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

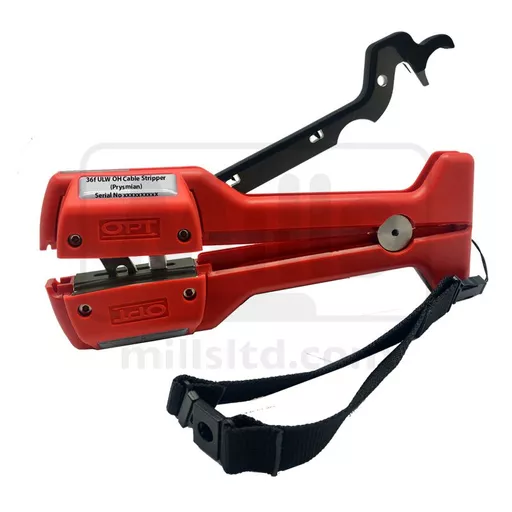

OPT 36f COF215 Ultra-Lightweight Overhead Sheath Stripper. Used to remove the sheath from 36f Ultra-Lightweight Over Head Drop Wire Cable, in addition to 24f and 48f.

The stripper has a profiled cassette that slits the sheath on a 36f Ultra-LightWeight (ULW) Overhead Cable - 7mm diameter with a 2mm sheath wall thickness (typically as supplied by Prysmian ).
Each cassette contains a single rotary blade which is located on the handle mechanism, as a pair the blades are diametrically opposite each other. These blades cut through the outer sheath to expose the individual cable elements, ideally using the yellow stripe(s) as a guide to prevent the blades coming in contact with the strength members.
A profiled roller is located either side of the rotary blade to ensure the internal cable elements are not damaged during the stripping operation.
The handle locking mechanism ensures the stripper remains closed during the sheath stripping operation. A wrist strap and user instructions are supplied with each stripper.
Dimensions 210 x 67 x 36mm

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
