OPT T0166 36F ULW Drop Wire 1.5mm Sheath Stripper

Product No: E00-7195

OPT T0166 36F ULW Drop Wire 1.5mm Sheath Stripper

OPT 36f Ultra-LightWeight (ULW) Overhead Cable Sheath Stripper - For 7mm diameter with a 1.5mm sheath wall thickness.

Quick Links

£144.84 ex VAT

£173.81 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

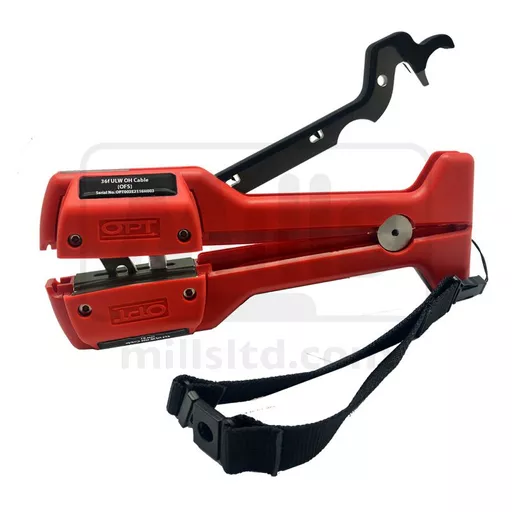

The stripper has a profiled cassette that slits the sheath on a 36f Ultra-LightWeight (ULW) Overhead Dropwire Cable - 7mm diameter with a 1.5mm sheath wall thickness (typically as supplied by OFS).
Each cassette contains a single rotary blade which is located on the handle mechanism, as a pair the blades are diametrically opposite each other.
These blades cut through the outer sheath to expose the individual cable elements, ideally using the yellow stripe(s) as a guide to prevent the blades coming into contact with the strength members.
A profiled roller is located either side of the rotary blade to ensure the internal cable elements are not damaged during the stripping operation. The handle locking mechanism ensures the stripper remains closed during the sheath stripping operation.
A wrist strap and user instructions are supplied with each stripper.

Dimensions 210 x 67 x 36mm

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
