OPT T0199 Jumper Cable Sheath Stripper 3A

Product No: E00-1409

OPT T0199 Jumper Cable Sheath Stripper 3A

Longitudinal cable sheath stripper designed for 3mm fibre jumper cable

Quick Links

£51.11 ex VAT

£61.33 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

Longitudinal cable sheath stripper designed for 3mm fibre jumper cable.

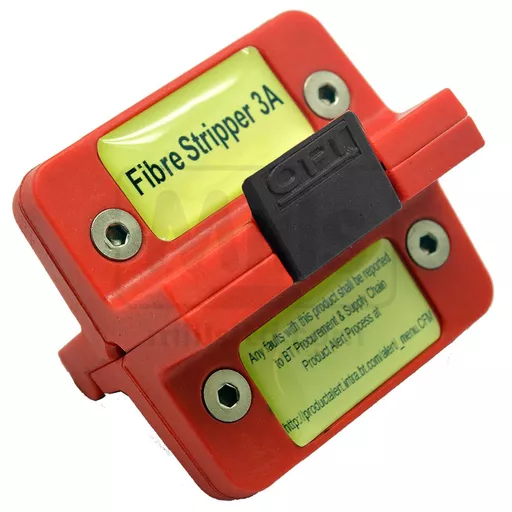

The fibre stripper 3a cross section consists of four individual, plastic moulded, right-angled sections.

The top two right angled mouldings have one circular blade ‘sandwiched’ between these two sections and likewise another blade the bottom two section.

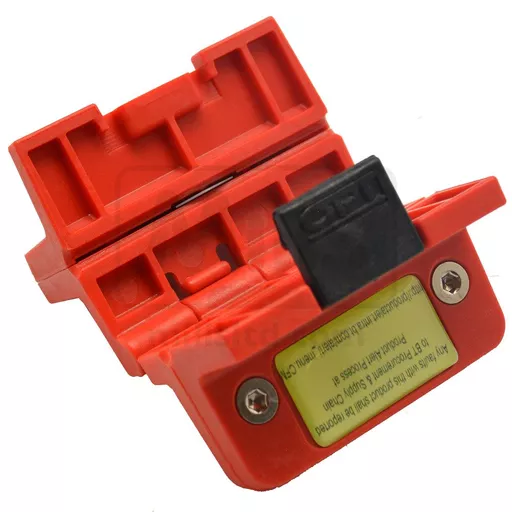

To perform the sheath cutting operation the 3mm cable is placed in the central groove in the lower stripper half at a point where the fibre element within the cable needs to be exposed. The top half is then closed, and the two halves clipped together.

Closing the two halves results in the blades penetrating the cable outer sheath. The stripper is then ‘drawn’ longitudinally along the cable axis cutting the cable sheath into two sections.

These two sections can be removed using side cutters and the Kevlar also removed.

Ref: 127048

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

Download Datasheet
