Metrel MI 3108 EurotestPV Photovoltaic Test Kit

Product No: C70-2036

Metrel MI 3108 EurotestPV Photovoltaic Test Kit

Available in standard and pro kits.

Quick Links

Type

£4409.96 ex VAT

£5291.95 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The Metrel MI 3108 EurotestPV is a combined photovoltaic tester and electrical installations safety tester. It enables complete testing of electrical installations according to EN 61557 standards and in addition performs all necessary tests required on single-phase photovoltaic (PV) installations.

This includes all of the tests as required by EN 62446, but also includes I - U characteristic, Calculation of STC values and power measurements on Inverter’s DC and AC sides.

The unit is designed for the demanding working conditions (up to 1000 V, with 15 A DC). To greatly improve user safety the MI 3108 EurotestPV comes with the PV Safety Probe which ensures safe disconnection every time.

Features

Photovoltaic installations

Calculation of STC values: the measured current and voltage values are, according to environment conditions, recalculated to Standard Test Condition values which makes possible, to compare the results even if they were taken under different test conditions.
Graphical representation: the I-V characteristic of PV module or string is graphically represented on LCD display.
Power and efficiency measurements: 2 voltage & 2 current channels for simultaneous AC & DC parameters measurements.
PV Remote Unit: Optional unit for simultaneous measurements of solar irradiation and temperature of PV module.

Electrical installations

RCD Auto: Automated RCD testing procedure significantly reduces test time.
Trip Lock function: Loop impedance test are performed without tripping the RCD.
B type RCD testing: is supported.
Earth resistance measurement: instrument supports 3-wire earth resistance testing.
Built-in fuse tables: for automatic evaluation of the line / loop impedance results.
Online voltage monitoring: monitors all 3 voltages in real time.
Scope function: real-time U/I scope.
Harmonics analysis: 1-phase power and energy measurements with up to 11th harmonics analysis is supported.
Memory: Up to 1800 test results or up to 500 graphical results with timestamp can be stored in internal memory.
BT connectivity: it enables BT communication with Android tablets and smart phones via optional BT dongle.
Android application: enables advanced data management APP EuroLink PV and EuroLink Android.
Downloadable: PC SW EuroLink PRO enables downloading, review, analyses and printing of test results.

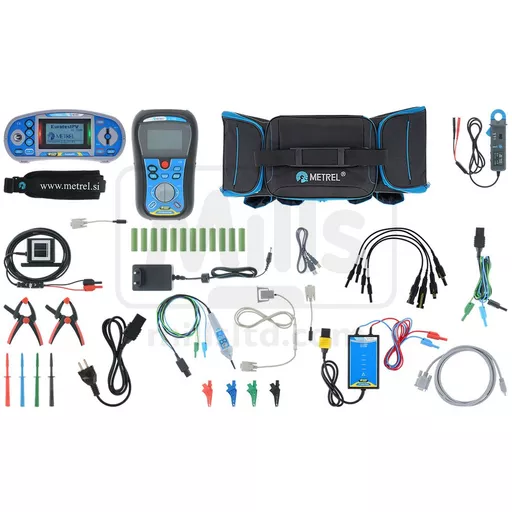

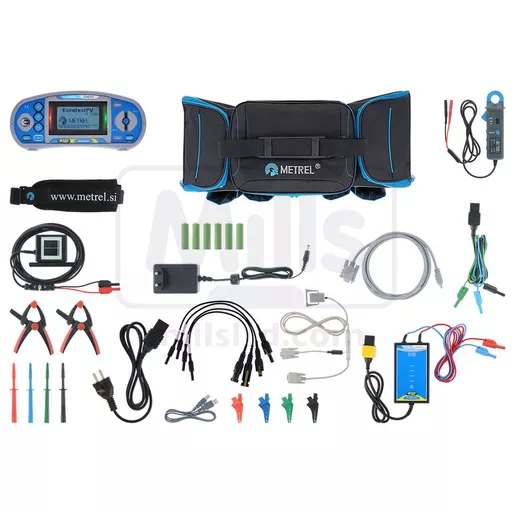

MI 3108ST EurotestPV Standard Kit Contents

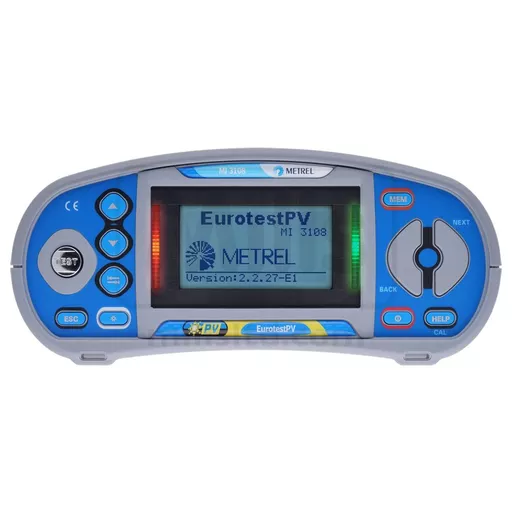

Instrument MI 3108 EurotestPV
Soft carrying bag
Tip commander
Test lead, 3 x 1.5 m
Test probe, 3 pcs (blue, black, green)
Crocodile clip, 3 pcs (blue, black, green)

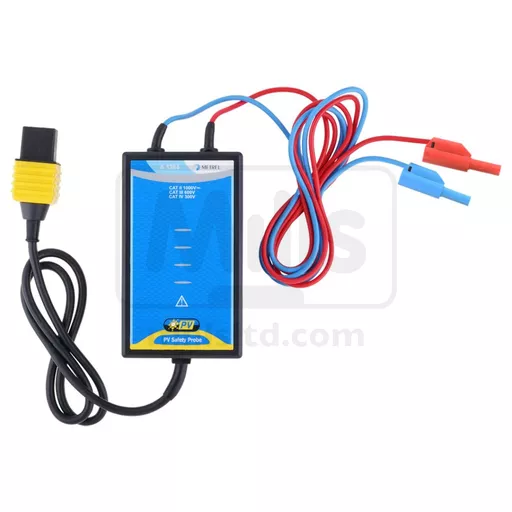

PV Safety Probe
PV MC3/4 male/female adapters
AC/DC current clamp
PV reference cell + cable adapter
Temperature probe + cable adapter
Power supply adapter + 6 NiMH batteries, type AA
USB and RS232 - PS/2 cable
PC SW EuroLink PRO
Set of carrying straps
Short instruction manual
Instruction manual and handbook on CD
Calibration certificate
