Product No: C72-1982

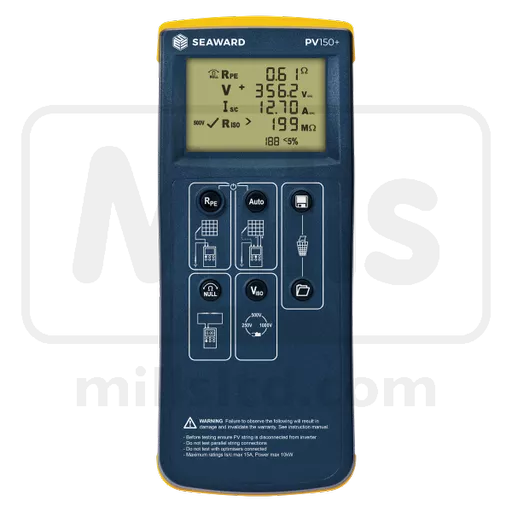

Seaward PV150+ Solar Installation Complete Test Kit

Product No: C72-1982

Seaward PV150+ Solar Installation Complete Test Kit

The PV150+ is an upgraded version of the popular PV150, designed to better support the testing of PV modules with recent technology advances and associated higher efficiencies. Combines ground continuity, DC operating power, and operating current test functions. It can also test insulation resistance, open circuit voltage, and short circuit current at the push of a button.



Improved capacitive induced in-rush protection by a factor of 300%

Combines PV commissioning tests required by IEC 62446

Enables the user to safely test energized PV arrays

Easy to use, single key testing and measurement operation

On-board data storage and USB connectivity for data export



Key Features:

Ground (earth) continuity measurement with test lead null for long test-leads

PV string open circuit voltage measurement up to 1000V DC with polarity indication

PV string short circuit current measurement up to 15A DC

PV array insulation test at 250/500/1000V

Tests individual PV modules or strings

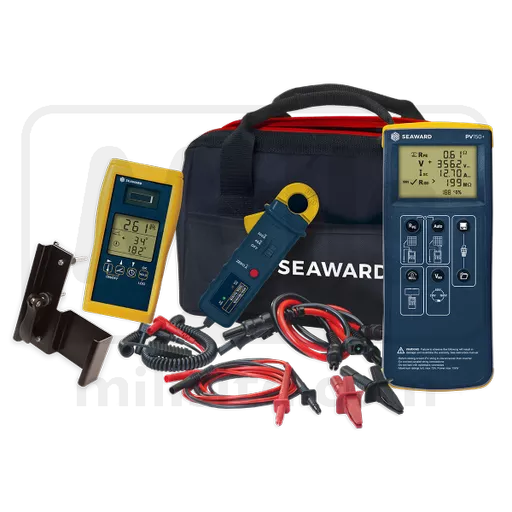

Contents

2x MC4 test lead adaptors

2x Combiner box test probes and detachable alligator clips (MC4)

AC/DC current clamp

Solar Survey 200R irradiance meter and temperature probe

Solar Survey 200R mounting bracket

Rugged carry bag

Quick Start Guide

UKAS Calibration Certificate

SolarCert PC Software



Please see the specifications sheets for further details.



Quick Links

£1350.52 ex VAT
£1620.62 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




The PV150+ is an upgraded version of the popular PV150, designed to better support the testing of PV modules with recent technology advances and associated higher efficiencies. Combines ground continuity, DC operating power, and operating current test functions. It can also test insulation resistance, open circuit voltage, and short circuit current at the push of a button.

Improved capacitive induced in-rush protection by a factor of 300%

Combines PV commissioning tests required by IEC 62446

Enables the user to safely test energized PV arrays

Easy to use, single key testing and measurement operation

On-board data storage and USB connectivity for data export

Key Features:

Ground (earth) continuity measurement with test lead null for long test-leads

PV string open circuit voltage measurement up to 1000V DC with polarity indication

PV string short circuit current measurement up to 15A DC

PV array insulation test at 250/500/1000V

Tests individual PV modules or strings

Contents:

2x MC4 test lead adaptors

2x Combiner box test probes and detachable alligator clips (MC4)

AC/DC current clamp

Solar Survey 200R irradiance meter and temperature probe

Solar Survey 200R mounting bracket

Rugged carry bag

Quick Start Guide

UKAS Calibration Certificate

SolarCert PC Software

Replaces C72-1981

Please see the specifications sheets for further details.

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Download Datasheet
Download C72 1982 Pv150 Datasheet Rev 1.0
Download C72 1982 Pv150 Rev 1.1 User Manual
