Product No: C05-1068

Seikoh Giken FerruleMate 2.0 Fibre Cleaner Pen

Product No: C05-1068

Seikoh Giken FerruleMate 2.0 Fibre Cleaner Pen

The next generation of Seikoh Giken FerruleMate fibre cleaners - FerruleMate 2.0. Utilising a patented rotating cleaning tip and unique Slide-Guide cleaning cloth, the new FerruleMate 2.0 offers the widest cleaning area on the market today.

A key feature of the FerruleMate 2.0 is its unique Push-Click operation. The contoured tip fits easily into the feed-through adapter and the self-actuated cleaning tape feed provides an audible "Click" confirming that the cleaning is successful.

Connector cleaning performance is guaranteed as the FerruleMate 2.0 cleans beyond the critical fibre core and deep into the contact area while still seated in a bulkhead adapter.

The FerruleMate 2.0 is a remarkable evolution for its combination of “Durability”, “Reliability”, “Simplicity” and “Low Cleaning Cost”

Available in the following options:

FerruleMate 2.0 FC/SC/ST Fibre Cleaner Pen 2.50mm with 800+ cleanings per unit (both PC and APC)

FerruleMate 2.0 LC/MU Fibre Cleaner Pen 1.25mm with 800+ cleanings per unit (both PC and APC)

FerruleMate 2.0 MPO Fibre Cleaner Pen 2.0mm with 500+ cleanings per unit (both PC and APC)

Applications

1. Inside Plant distribution panels and assemblies.

2. Outdoor pedestal bulkheads for FTTx installations.

3. Server cards, optical switches, routers and OADMs female modules.

4. Cable assembly production enivronments.

5. Benchtop Testing and Final Inspection pack-out stations.

Key Features

1. Patented 360 degree Rotational Tip proivdes extra wide cleaning.

2. Easy one-push operation with extendable/retractable contoured nozzle.

3. Highly effective cleaning via non-woven micro fibre.

4. Lint free and zero static.

5. 800+ cleanings per unit = Ultra low cost per connector cleaned.

6. Static dissipative plastic resin body and tape feed is safe for ESD work.

7. Compliant with EU/95/2002/EC Directive (RoHS).

DImensions: 230 x 30 x 40 mm (Including cap)

Weight 85g

Quick Links

£62.66 ex VAT
£75.19 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




The next generation of Seikoh Giken FerruleMate fibre cleaners - FerruleMate 2.0. Utilising a patented rotating cleaning tip and unique Slide-Guide cleaning cloth, the new FerruleMate 2.0 offers the widest cleaning area on the market today.

A key feature of the FerruleMate 2.0 is its unique Push-Click operation. The contoured tip fits easily into the feed-through adapter and the self-actuated cleaning tape feed provides an audible "Click" confirming that the cleaning is successful.

Connector cleaning performance is guaranteed as the FerruleMate 2.0 cleans beyond the critical fibre core and deep into the contact area while still seated in a bulkhead adapter.

The FerruleMate 2.0 is a remarkable evolution for its combination of “Durability”, “Reliability”, “Simplicity” and “Low Cleaning Cost”

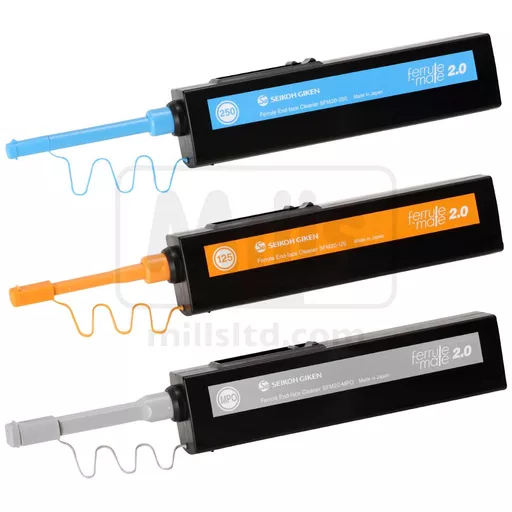

Available in the following options:

FerruleMate 2.0 FC/SC/ST Fibre Cleaner Pen 2.50mm with 800+ cleanings per unit (both PC and APC)

FerruleMate 2.0 LC/MU Fibre Cleaner Pen 1.25mm with 800+ cleanings per unit (both PC and APC)

FerruleMate 2.0 MPO Fibre Cleaner Pen 2.0mm with 500+ cleanings per unit (both PC and APC)

Applications

1. Inside Plant distribution panels and assemblies.

2. Outdoor pedestal bulkheads for FTTx installations.

3. Server cards, optical switches, routers and OADMs female modules.

4. Cable assembly production enivronments.

5. Benchtop Testing and Final Inspection pack-out stations.

Key Features

1. Patented 360 degree Rotational Tip proivdes extra wide cleaning.

2. Easy one-push operation with extendable/retractable contoured nozzle.

3. Highly effective cleaning via non-woven micro fibre.

4. Lint free and zero static.

5. 800+ cleanings per unit = Ultra low cost per connector cleaned.

6. Static dissipative plastic resin body and tape feed is safe for ESD work.

7. Compliant with EU/95/2002/EC Directive (RoHS).

DImensions: 230 x 30 x 40 mm (Including cap)

Weight 85g

Mills Part Numbers

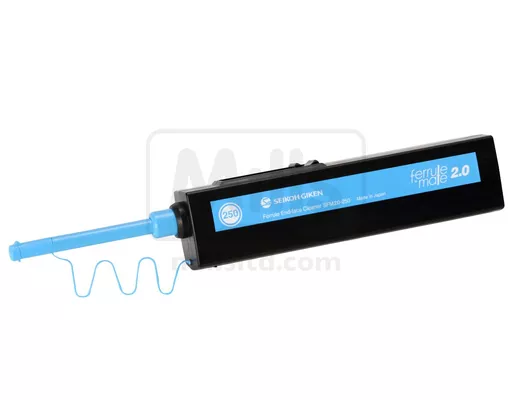

C05-9331 FerruleMate 2.0 FC/SC/ST Fibre Cleaner Pen 2.50mm

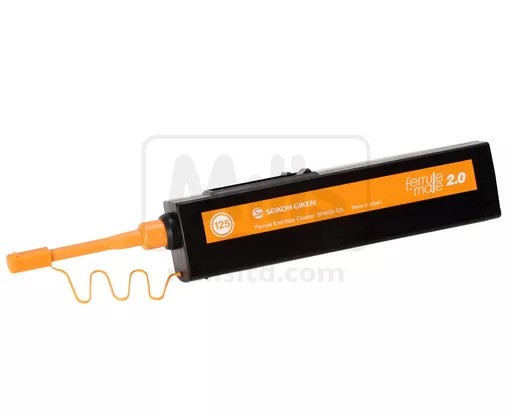

C05-9329 FerruleMate 2.0 LC/MU Fibre Cleaner Pen 1.25mm

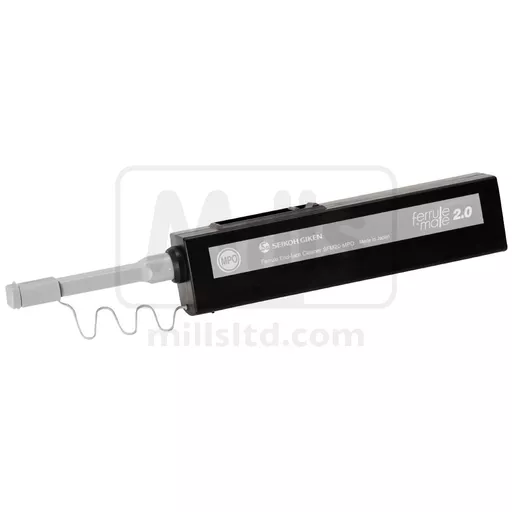

C05-1068 FerruleMate 2.0 MPO Fibre Cleaner Pen 2.0mm
