Megger KC-C Series Wind Turbine Lightning Protection Low Current Test Lead Set 2A

Product No: C00-0114

Megger KC-C Series Wind Turbine Lightning Protection Low Current Test Lead Set 2A

The new KC-C test leads take advantage of the long test lead mode on the new DLRO2. The DLRO2s ability to test with up to 3.2 Ω total resistance at 1 A means the new KC-C series of leads can be much smaller and lighter, a distinct safety enhancement when working at height.

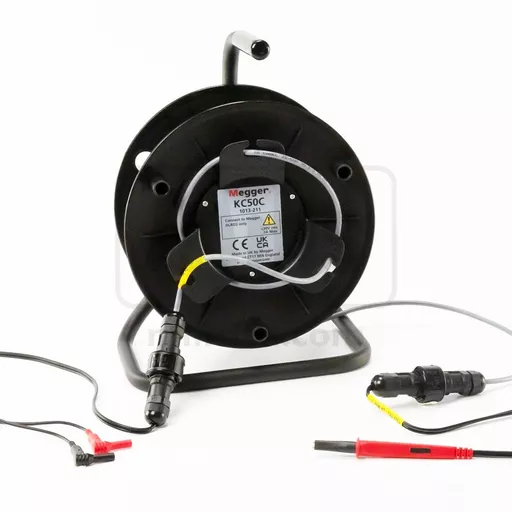

The KC-C lead set consists of two leads, a short one 3 m long, and a long one on a cable drum.
On each end of each test lead there is an IP68 rated (when connected), click locking connector. This allows the
terminations to be fitted on either end of the test leads, and the instrument connections are interchangeable with the test connections.

Available in 50m or 100m models.

Features

Designed to work with DLRO2
Unique lightweight and versatile design ideal for difficult testing tasks
Cable reels in two lengths KC100C (100 m) and KC50C (50 m)
Allows easy and reliable measurement of lightning protection circuit resistance of tall structures
Easy to use click-to-lock connectors rated IP68
Ideal for testing low resistance on wind turbines, railways and long cables

The lead sets are supplied with the following:

One 50m or 100m cable reel fitted with male connectors
One short 3 m test lead fitted with male connectors
One Kelvin probe fitted with short female connector
One large Kelvin clamp fitted with short female connector
Two right angled 4 mm test terminals to fit the DLRO2

Weight with accessories: 50m - 5.18kg / 100m - 8.36kg

Please see datasheets for further details
