Product No: C00-6970

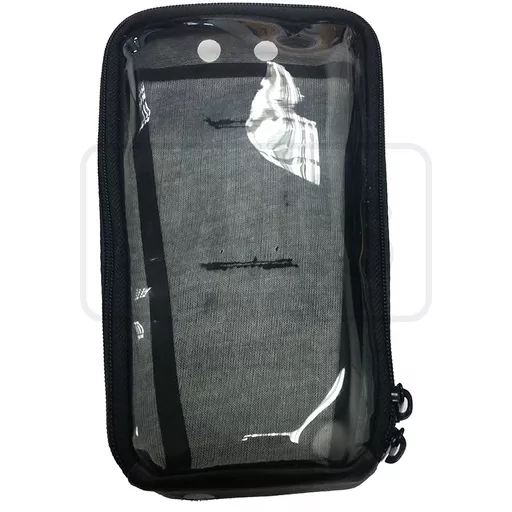

RTG3-2T Two-Tone Return Path Test Generator & Pouch

Product No: C00-6970

RTG3-2T Two-Tone Return Path Test Generator & Pouch

RTG-3 2-Tone Return Path Test Generator

Features

  • 2-Tone output mode. Both channels can be individually toggled on/off.
  • Extended frequency range (5-204MHz) for compatibility with EuroDOCSIS 3.1
  • Channel and frequency table programming (Protected by pin code)
  • Frequency tables by project name (up to 12 frequencies per table)
  • User access of a single frequency table is authorized by supervisor
  • Output level adjustment via dialog
  • Level unit on display can be set to either dBμV or dBmV.
  • Sequential output mode (up to 12 frequencies) with adjustable interval time.
  • Integrated intelligent battery charger for prolonged battery lifetime
  • Autonomy ≥ 8 hours
  • Automatic shutdown timer

Specifications

  • Frequency range – 5-204 MHz (25 kHz resolution)
  • Frequency accuracy – typically ± 2,5 ppm
  • Level Range – 20-50 dBmV (single-tone) / 20-45 dBmV (2-tone) (0,5 dB resolution)
  • Output Level accuracy – typically ± 0,25 dB
  • Spurious and harmonics rejection ≥55 dBc.
  • Return loss – typically > 20dB
  • Connector type: F (75 Ω)
  • Test Point -20dB / RF OUT

Quick Links

£1324.61 ex VAT
£1589.53 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




RTG-3 2-Tone Return Path Test Generator & Pouch

Features

  • 2-Tone output mode. Both channels can be individually toggled on/off.
  • Extended frequency range (5-204MHz) for compatibility with EuroDOCSIS 3.1
  • Channel and frequency table programming (Protected by pin code)
  • Frequency tables by project name (up to 12 frequencies per table)
  • User access of a single frequency table is authorized by supervisor
  • Output level adjustment via dialog
  • Level unit on display can be set to either dBμV or dBmV.
  • Sequential output mode (up to 12 frequencies) with adjustable interval time.
  • Integrated intelligent battery charger for prolonged battery lifetime
  • Autonomy ≥ 8 hours
  • Automatic shutdown timer

Specifications

  • Frequency range – 5-204 MHz (25 kHz resolution)
  • Frequency accuracy – typically ± 2,5 ppm
  • Level Range – 20-50 dBmV (single-tone) / 20-45 dBmV (2-tone) (0,5 dB resolution)
  • Output Level accuracy – typically ± 0,25 dB
  • Spurious and harmonics rejection ≥55 dBc.
  • Return loss – typically > 20dB
  • Connector type: F (75 Ω)
  • Test Point -20dB / RF OUT
