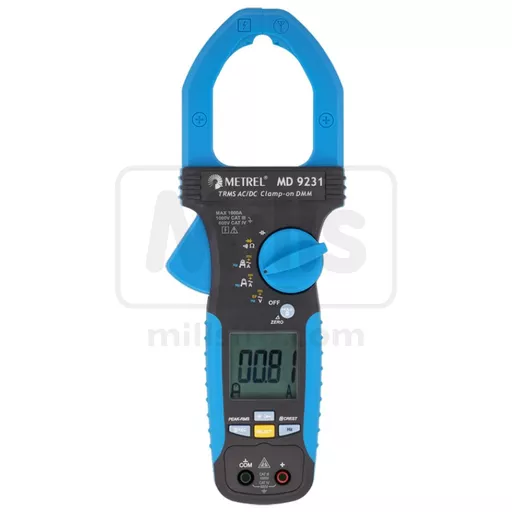

Metrel MD 9231 Industrial True RMS AC/DC Clamp Meter with Calibration Certificate

Product No: C72-7285

Metrel MD 9231 Industrial True RMS AC/DC Clamp Meter with Calibration Certificate

The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A.

It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency.

The MD 9231 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function.

It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case. It also has a flashlight for work in dark conditions.

Measuring Functions

DC and TRMS AC voltage measurement up to
1000 V;
• DC and TRMS AC current measurement up to
1000 A;
• Resistance measurement;
• Acoustic continuity test;
• Diode test;
• Frequency measurement;
• Capacitance measurement.

Features

• Auto-ranging.
• LCD display with backlight, 3-5/6 digit, 6000 count.
• Flashlight.
• Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors.
• Data hold function.
• MIN/MAX/AVG function.
• Relative zero.
• 51 mm jaw opening.
• CAT IV / 600 V, CAT III / 1000 V overvoltage categories.

Quick Links

£348.11 ex VAT

£417.73 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A.

It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency.

The MD 9231 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function.

It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case. It also has a flashlight for work in dark conditions.

Measuring Functions

Features

Delivery & returns

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Downloads

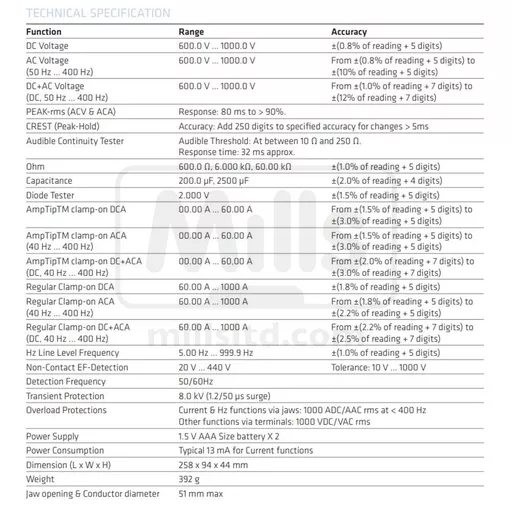

Download Datasheet

Download C70 7285 Datasheet
