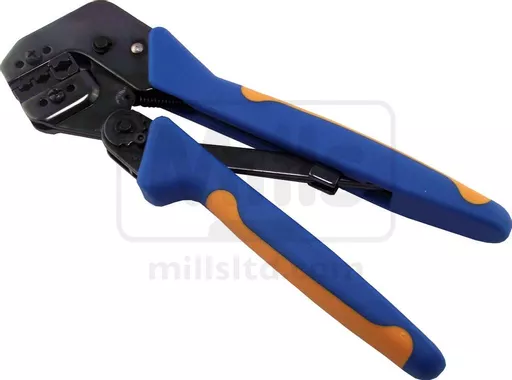

TE Connectivity 58433-3 Pro-Crimper III Hand Crimper

Product No: E00-1035

TE Connectivity 58433-3 Pro-Crimper III Hand Crimper

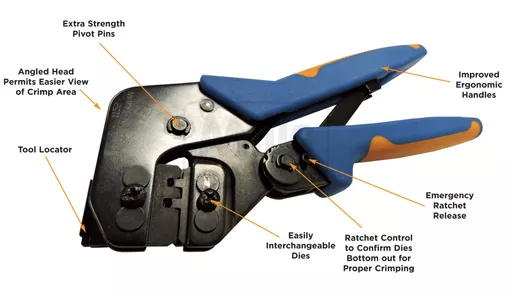

The Pro-Crimper III tool frame features a stationary jaw and handle, a moving jaw and handle, and an adjustable ratchet that ensures full crimping. The tool frame holds the die assembly.
The die assembly consists of an anvil and indenter. When closed, the dies form three crimping chambers. The indenter is marked with the letters R, B, and Y which correspond with the colour of the terminal insulation (red, blue, or yellow). Die retaining screws are used to secure the dies in the tool frame.

Quick Links

£205.86 ex VAT

£247.03 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The PRO-CRIMPER III Hand Crimping Tool is a “Commercial" grade tool and is designed primarily for field installation, repair, maintenance work, or prototyping in industrial, commercial, or institutional applications. Product crimped with this tool will meet the crimp height requirement for hand tools in the appropriate Application Specification but may not comply with other feature parameters of the specification. TE Connectivity offers a variety of tools to satisfy your performance requirements.

Characteristics of a Commercial Crimping Tool
Every Commercial grade hand tool incorporates features for long lasting performance and ease-of-use.

They include ergonomic handle designs and a ratchet control system designed to create a proper crimp.

Ratchet System for Improved Repeatability.

Ratchet control is provided for complete crimp cycling; this helps eliminate partial crimps.

Also, an emergency ratchet release allows the user to open the tool jaws at any time during the crimp cycle.

Applying the Crimp Force
To reduce handle force, the linkage was designed to match the forces required to crimp our largest insulated terminal.

The result is dramatically less handle force than comparable tools.

Also, the angled head and specially designed handles reduce hand stretch and provide comfortable operation.
Ensuring a Proper Crimp Locators are mounted on pin-and-socket style tools.

They help properly locate the contact in the die set, provide a wire stop, and help minimize contact rotation and bending during crimping.
