Product No: S83-2089

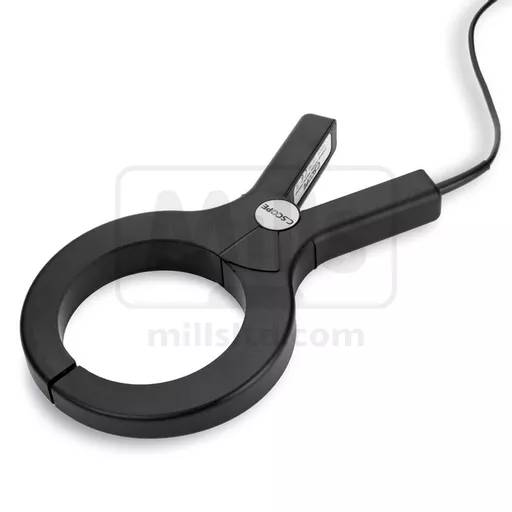

C.Scope YIRC-33-8 Signal Clamp

Product No: S83-2089

C.Scope YIRC-33-8 Signal Clamp

The CScope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.

Construction
Toroidal induction ring housed in robust plastic.
Spring loaded jaws.

Optimisation
Tuned for optimum use with 33kHz Signal Generators.

Safety
Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995

Dimensions
270 x 160 x 28mm

Compatibility
Maximum service diameter = 105mm
Suitable for use with all C.Scope Signal Generators and Transmitters.

Also known as Locator 9A/B/C Signal Clamp

Ref: 37294

Quick Links

£251.71 ex VAT
£302.05 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




The CScope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.

Construction
Toroidal induction ring housed in robust plastic.
Spring loaded jaws.

Optimisation
Tuned for optimum use with 33kHz Signal Generators.

Safety
Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995

Dimensions
270 x 160 x 28mm

Compatibility
Maximum service diameter = 105mm
Suitable for use with all C.Scope Signal Generators and Transmitters.

Also known as Locator 9A/B/C Signal Clamp

Ref: 37294

To see our delivery charges, please click here

To see our terms regarding returns, please click here

Download Datasheet
