Product No: C70-7360

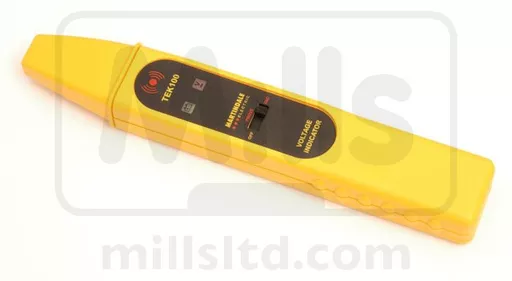

Martindale TEK100YE Non Contact Voltage Detector

Product No: C70-7360

Martindale TEK100YE Non Contact Voltage Detector

This voltage pen is suitable for detecting 180V to 600V AC rms without requiring physical contact with the conductor. The presence of any voltage between 180V and 600V AC will generate an audible tone, together with a red visual indication.

The integral self test activates the sensor in the tip of the tester at 50Hz as well as checking the battery and LED. The entire circuit, not just the indicator LED, is therefore tested.

This proves that the unit is fully functional and avoids the need for a separate proving unit.

The only non-contact detector with a built-in proving device that really proves the entire circuit.

Suitable for Smart Home Testing

Electrical

Voltage range: 180V to 600V AC rms

Frequency range: 45Hz to 1kHz

Voltage sensitivity:

Flat 1mm2 twin & earth - 3mm at 230v

Flat 2.5mm2 twin & earth - 3mm at 230v

Round 1.5mm2 - 2mm at 230v

Environmental

Temperature (Operating & Storage): -10°C to 40°C.

Humidity (Operating & Storage):

Quick Links

£52.68 ex VAT
£63.22 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




This voltage pen is suitable for detecting 180V to 600V AC rms without requiring physical contact with the conductor. The presence of any voltage between 180V and 600V AC will generate an audible tone, together with a red visual indication.

The integral self test activates the sensor in the tip of the tester at 50Hz as well as checking the battery and LED. The entire circuit, not just the indicator LED, is therefore tested.

This proves that the unit is fully functional and avoids the need for a separate proving unit.

The only non-contact detector with a built-in proving device that really proves the entire circuit.

Suitable for Smart Home Testing

Electrical

Voltage range: 180V to 600V AC rms

Frequency range: 45Hz to 1kHz

Voltage sensitivity:

Flat 1mm2 twin & earth - 3mm at 230v

Flat 2.5mm2 twin & earth - 3mm at 230v

Round 1.5mm2 - 2mm at 230v

Environmental

Temperature (Operating & Storage): -10°C to 40°C.

Humidity (Operating & Storage):
