Product No: C00-5465

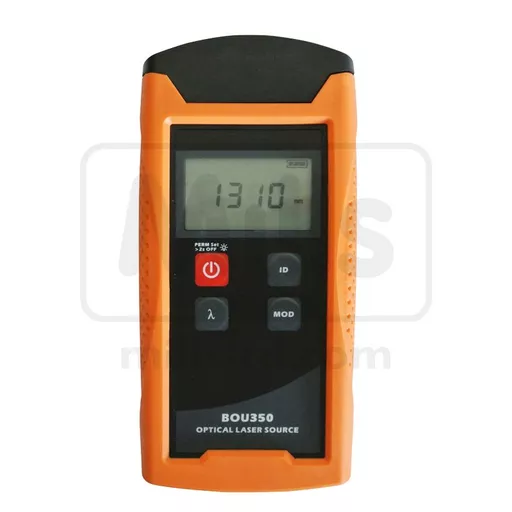

Mills Optical Laser Source

Product No: C00-5465

Mills Optical Laser Source

Mills Optical Laser Source available in the following models:

850/1300nm Optical Laser Source - Output Power > -10 dBm @ 850nm/1300nm / Connector SC/PC

1310/1550nm Optical Laser Source - Output Power > - 6dBm @ 1310nm/1550nm / Connector SC/PC with SC/PC male to LC/PC female SM adaptor

Features:

High stabilisation, built-in optic isolator
270Hz, 1KHz, 2KHz modulation output
Energy save mode

Stabilisation*                0.05dB / 1 hour; 0.1dB / 8 hours
Modulation                   270Hz, 1KHz, 2KHz

Auto Power Off            No operation in 10 minutes (can be cancelled)
Battery Charge            Yes
Power Supply              AA * 2 batteries or AC/DC power supply adapter

Size(H*W*D)                            160mm * 75mm * 32mm
Weight                                      180g
Storage Temperature              -20 -- +60 , < 90%RH
Operating Temperature           -10 -- +50 , < 90%RH

Supplied with carry case and manual

Mills Part Numbers

Mills 850/1300nm Optical Laser Source

Mills 1310/1550nm Optical Laser Source

Quick Links

£102.04 ex VAT
£122.45 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




Mills Optical Laser Source available in the following models:

850/1300nm Optical Laser Source - Output Power > -10 dBm @ 850nm/1300nm / Connector SC/PC

1310/1550nm Optical Laser Source - Output Power > - 6dBm @ 1310nm/1550nm / Connector SC/PC with SC/PC male to LC/PC female SM adaptor

Features:

High stabilisation, built-in optic isolator
270Hz, 1KHz, 2KHz modulation output
Energy save mode

Stabilisation* 0.05dB / 1 hour; 0.1dB / 8 hours
Modulation 270Hz, 1KHz, 2KHz

Auto Power Off No operation in 10 minutes (can be cancelled)
Battery Charge Yes
Power Supply AA * 2 batteries or AC/DC power supply adapter

Size(H*W*D) 160mm * 75mm * 32mm
Weight 180g
Storage Temperature -20 -- +60 , < 90%RH
Operating Temperature -10 -- +50 , < 90%RH

Supplied with carry case and manual

Mills Part Numbers

C00-5466 Mills 850/1300nm Optical Laser Source

C00-5465 Mills 1310/1550nm Optical Laser Source
