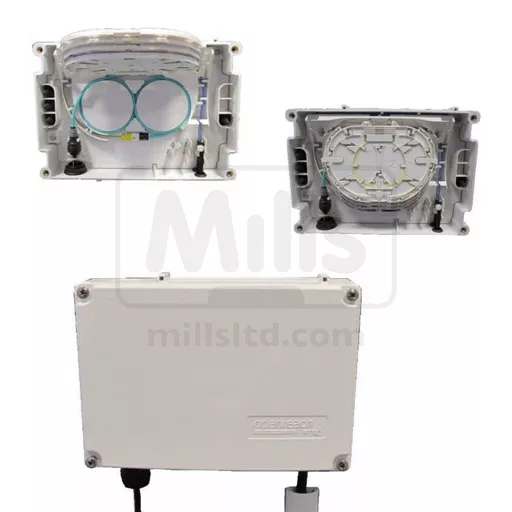

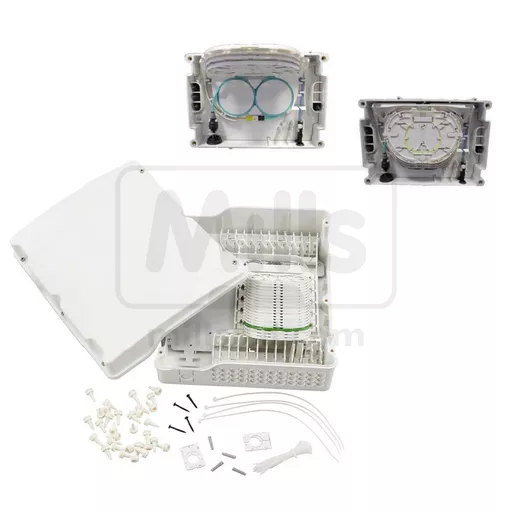

The Small Distribution Wall box is a wall mounted product used for the distribution of fibres to up to 6 customer drop cables. Each customer has an individual splice tray that can house up to four splices.

The box also has the added feature of a built in figure of eight routing system, that prevents fibre movement when aerial input cables are subjected to ice and wind loading. The unit is supplied with a gas/water block for the input cable.

The box can be supplied in white or dark grey and has a sealing rating of IP55. Customer drop cables of 3 to 6mm can be distributed from the box.

Features

• Each box comes with three double splice trays (6 customer trays) pre-fitted, and a single element splice tray for spare fibre storage.
• The box is supplied with a Gas/water block connector for use with blown fibre input cables and a 6-6mm reducer and 3mm transport tube.
• All fibres are positively managed to maintain a 30mm minimum bend radius within the wall box.
• A unique figure of eight locking system is integrated into the box. This prevents movement of fibres from aerial input cables when subjected to ice and wind loading.
• Splice trays hinge upwards individually, allowing full access to spliced fibres without disturbance to live fibres in adjacent trays.
•The wall boxes come with everything required to install one input cable and up to six drop cables (only splice protectors to be ordered separate)
• Storage area inside the box to hold any unused output cable sealing grommets.
• The boxes are UV stable to prevent discolouration of the material. The boxes are manufactured from UL94-V0 rated materials.

The SDWB Small Distribution Wall Box is supplied with:

3 x Customer Splice Tray (6 trays).
1 x Single Element Splice Tray
1 x Wall fixing Kit
1 x Installation Guide
6 x Drop Sealing Grommet.
7 x Cable Ties
1 x M20 Entry Cable Gland
1 x Aerial Cable Locking Kit

Dimensions 220 x 150 x 50mm

The Medium and Large Distribution Wall Boxes are wall mounted splice boxes used for the distribution of fibres to customer drop cables.

The units have a capacity of up to 168 (Medium) or 240 (Large) fibre splices and can accommodate input cables of both butt and inline types. Up to 32 or 48 customer drop cables of 3-6mm in diameter, and 4 or 8 customer drop cables of 6-12mm in diameter, can be distributed from the box.

Drop cable ports are provided on both top and bottom faces of the box and top and bottom manifolds provide easy routing of fibres within the unit.

The box can be supplied with either single element splice trays or single circuit splice trays.

The box can be supplied in white or dark grey and both units have an IP55 rating making it suitable for internal or external use.

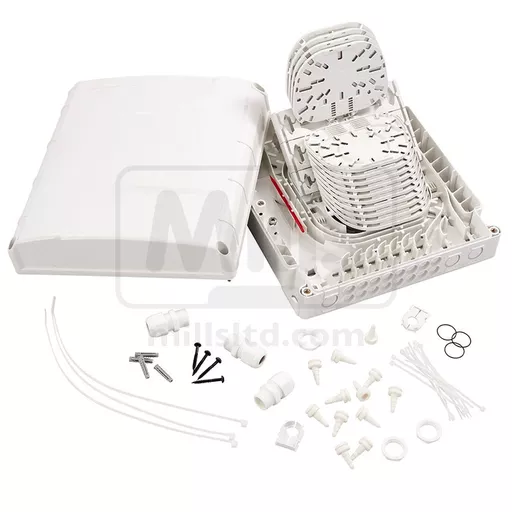

The MDWB Medium Distribution Wall Box is supplied with:
01 x Base
01 x Cover with Seal
04 x Cover Fixing Screws (Captive)
14 x Splice Trays SE or SC
02 x Fibre Routing Manifolds
03 x Cable Entry Gland
03 x Cable Tie - Entry Cable
12 x Drop Cable Grommet
12 x Cable Tie – Drop Cable
01 x Wall Fixing Kit
02 x In Line Cable Cover
01 x Installation Guide

Dimensions 307 x 400 x 131mm

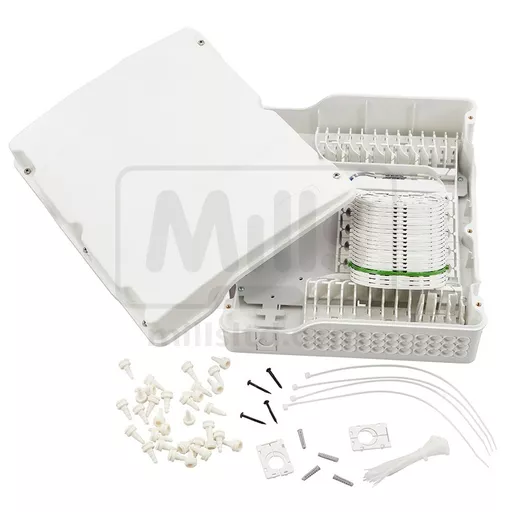

The LDWB Large Distribution Wall Box is supplied with:
01 x Base
01 x Cover with Seal
06 x Cover Fixing Screws (Captive)
20 x Splice Trays SE or SC
02 x Fibre Routing Manifolds
01 x Loop Port
03 x Cable Entry Gland
03 x Cable Tie Entry Cable
24 x Drop Cable Grommet
24 x Cable Tie – Drop Cable
01 x Wall Fixing Kit
02 x In Line Cable Cover
01 x Installation Guide

Dimensions 320 x 410 x 115mm

Please see datasheets for further details

Mills / Prysmian Part Numbers

XCPSC01915 Prysmian SDWB Small Distribution Wall Box 220 x 150 x 50mm

XCPSC03104 Prysmian MDWB Medium Distribution Wall Box 307 x 400 x 131mm

XCPSC01917 Prysmian LDWB Large Distribution Wall Box 320 x 410 x 115mm
